Transfer And Extension Case

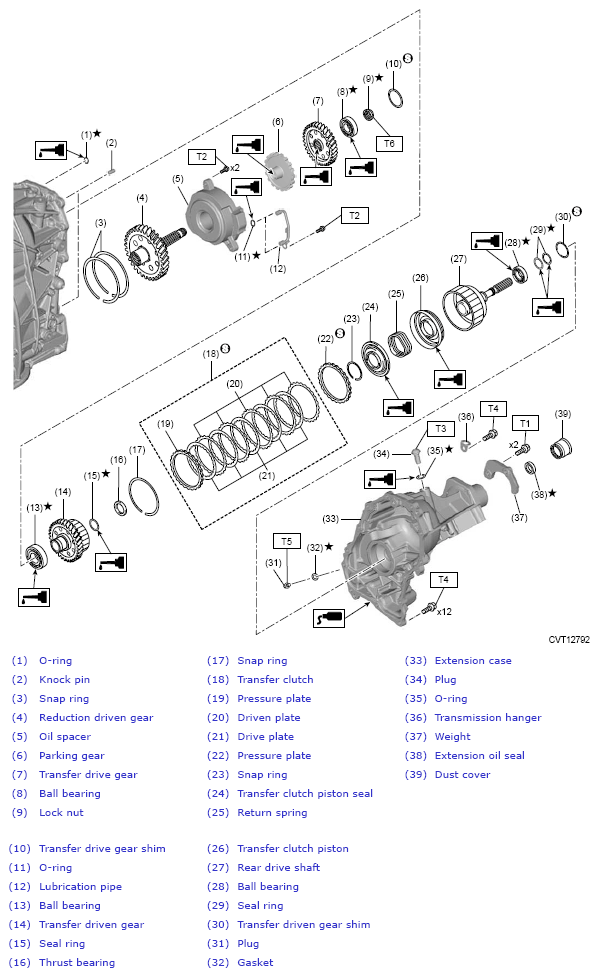

Fig 1: Transfer And Extension Case Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.5, 11.1)

T2: 17 (1.7, 12.5)

T3: 22 (2.2, 16.2)

T4: 25 (2.5, 18.4)

T5: 35 (3.6, 25.8)

T6: 95 (9.7, 70.1)
