Transmission Case

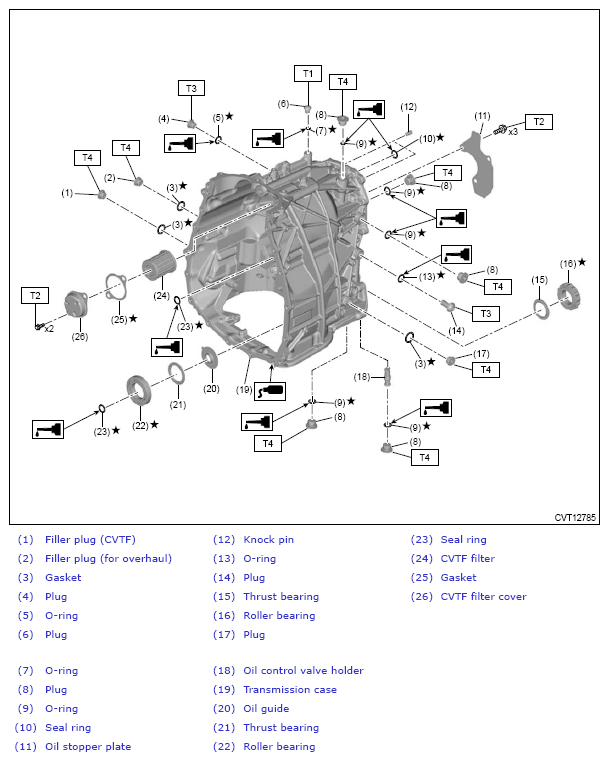

Fig 1: Transmission Case Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 17 (1.7, 12.5)

T3: 22 (2.2, 16.2)

T4: 50 (5.1, 36.9)
