After Overhaul

Remove the ST (STAND ASSY).
Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>AIR BREATHER HOSE>INSTALLATION .
Install the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TORQUE CONVERTER>INSTALLATION .

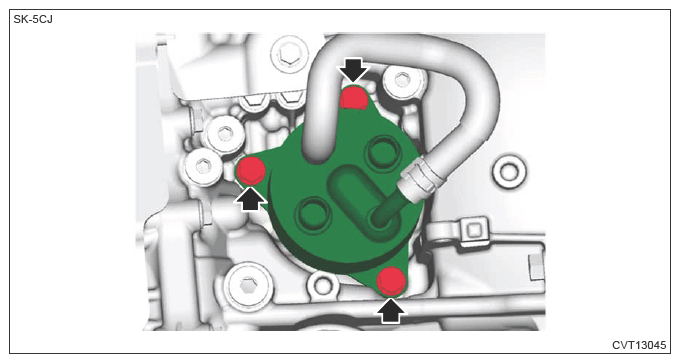

Install the CVTF cooler (with warmer feature).
1. Attach a new O-ring to the CVTF cooler (with warmer feature).
2. Install the CVTF cooler (with warmer feature).
  CAUTION: Be careful not to allow any foreign materials to enter the CVTF cooler (with warmer feature) and the transmission body during installation.

  Tightening torque:

  19 N.m (1.9 kgf-m, 14.0 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.

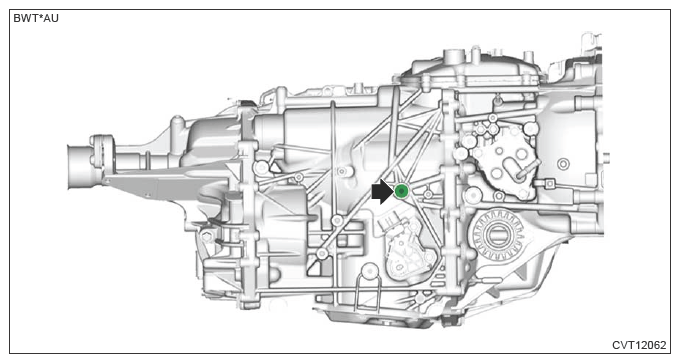

Remove the filler plug (for overhaul), and refill approx. 10 L (10.6 US qt, 8.8 Imp qt) of CVTF.
CAUTION: Always use specified CVTF. Using fluid other than specified CVTF will cause malfunction.

Preparation items:

CVTF: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>GENERAL DESCRIPTION>SPECIFICATION>CVTF .

Courtesy of SUBARU OF AMERICA, INC.
Using a new gasket, install the filler plug (for overhaul).
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)
