Reduction Driven Gear: Removal

  1. Remove the transfer driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSFER DRIVEN GEAR>REMOVAL .
  2. Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>PARKING PAWL>REMOVAL .

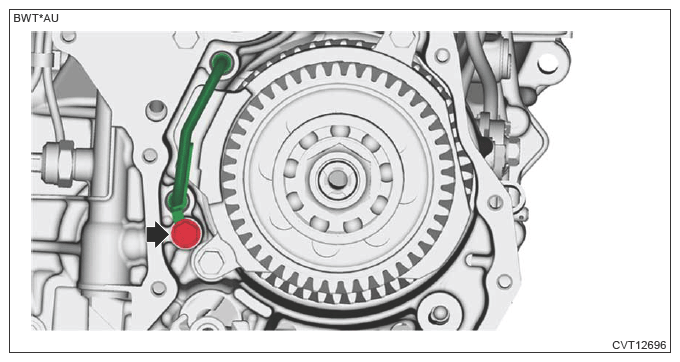

  3. Remove the lubrication pipe.
    G13950630Courtesy of SUBARU OF AMERICA, INC.

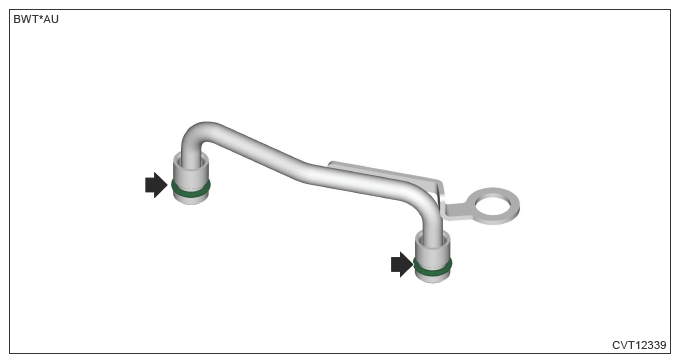

  4. Remove the O-rings.
    G13950631Courtesy of SUBARU OF AMERICA, INC.

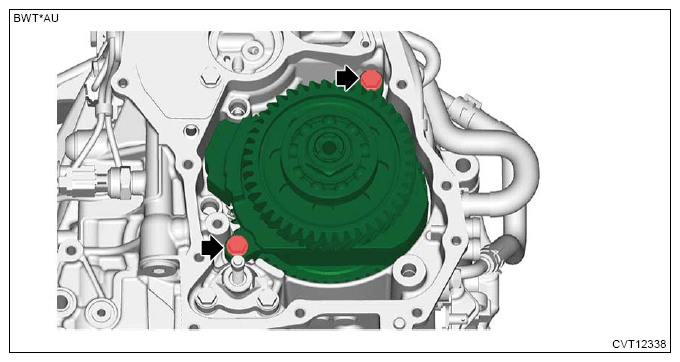

  5. Remove the transfer drive gear and oil spacer as a unit.
    G13950632Courtesy of SUBARU OF AMERICA, INC.

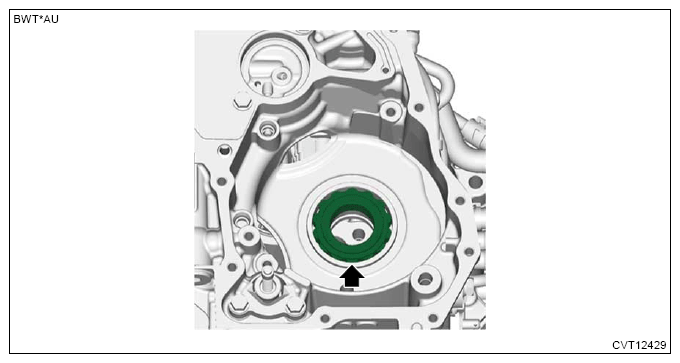

  6. Remove the roller bearing.
    G13950633Courtesy of SUBARU OF AMERICA, INC.

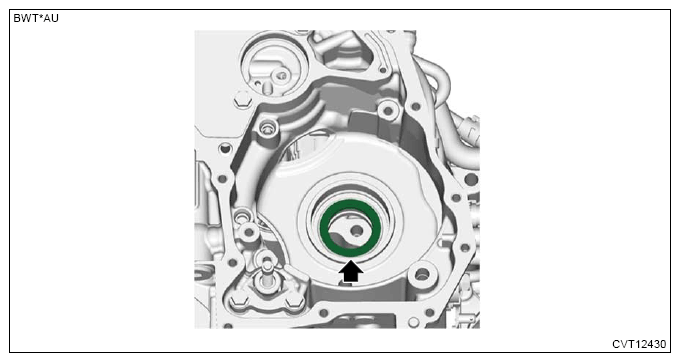

  7. Remove the thrust bearing.
    G13950634Courtesy of SUBARU OF AMERICA, INC.
