Transmission Case: Assembly

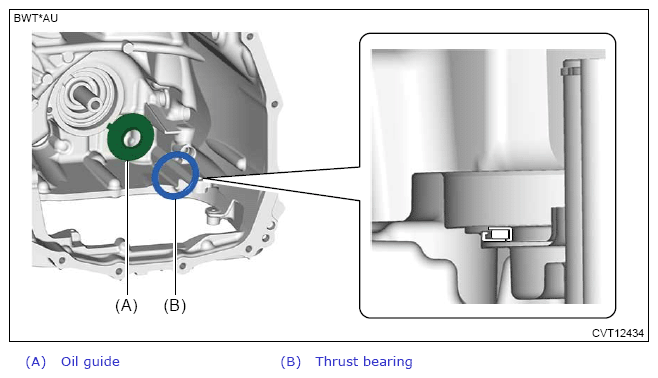

Install the thrust bearing and oil guide as shown in the figure.
NOTE: Make sure to install the thrust bearing in the right direction.

Courtesy of SUBARU OF AMERICA, INC.

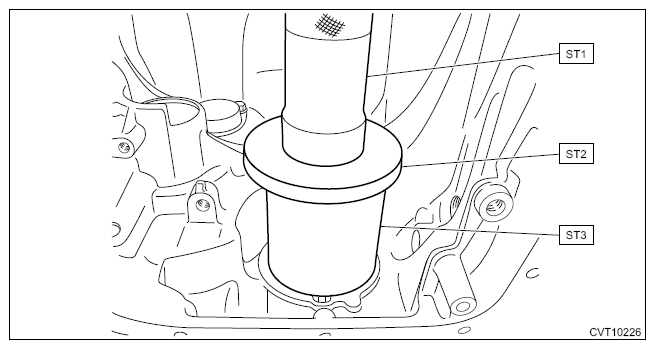

Press-fit the roller bearing using ST1, ST2, ST3 and a press.
Preparation tool:

ST1: BUSHING 1-2 INSTALLER (499277100)

ST2: INSTALLER (398177700)

ST3: PRESS SNAP RING (28499TC010)

Courtesy of SUBARU OF AMERICA, INC.

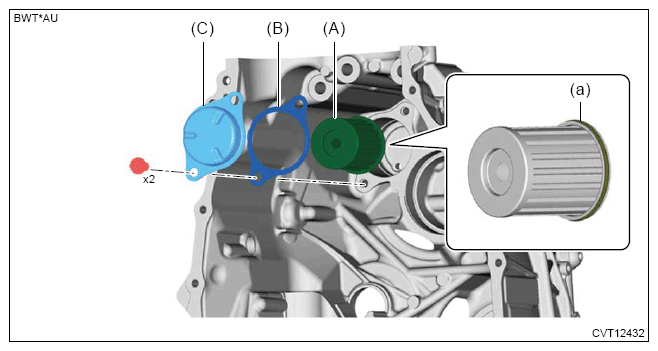

Install the CVTF filter, a new gasket and the CVTF filter cover.
NOTE:
- When reusing the CVTF filter, check the filter for clogging.
- Face the O-ring (a) to the transmission case side.
- Apply CVTF to the O-ring (a).
Tightening torque:

17 N.m (1.7 kgf-m, 12.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

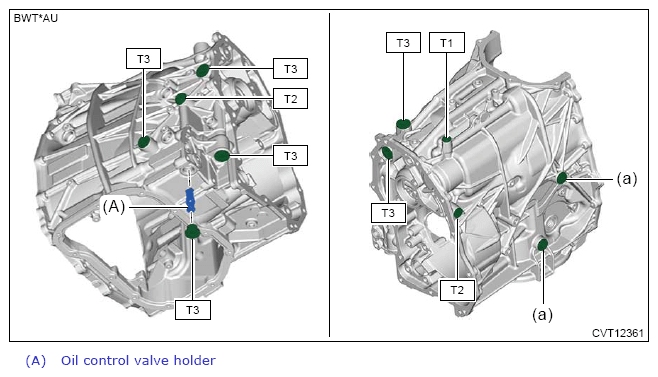

Install the oil control valve holder and plugs using new O-rings and new gaskets.
NOTE:
- Apply CVTF to the O-rings.
- Replace the gasket for plug (a) with a new part after adding CVTF.
Tightening torque:

T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

T2: 22 N.m (2.2 kgf-m, 16.2 ft-lb)

T3: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

Fig 1: Oil Control Valve Holder And Plugs (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.

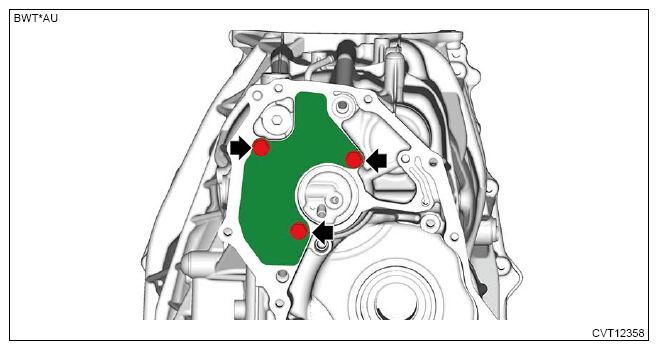

Install the oil stopper plate.
Tightening torque:

17 N.m (1.7 kgf-m, 12.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
