Transmission Case: Disassembly

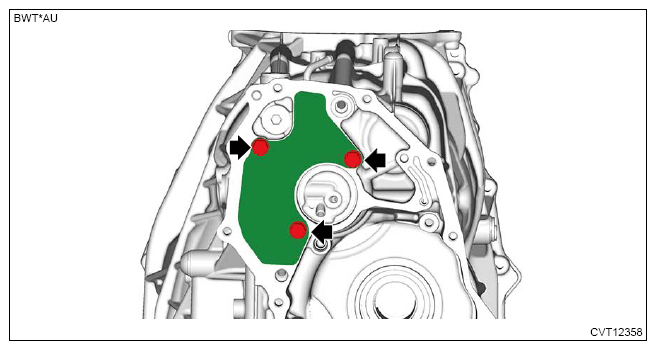

Remove the oil stopper plate.

Courtesy of SUBARU OF AMERICA, INC.

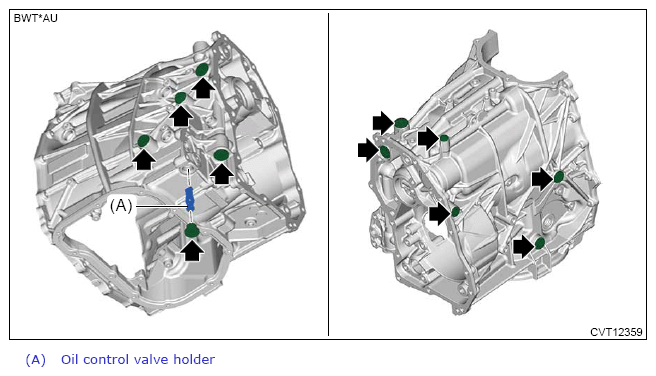

Remove each plug and oil control valve holder.

Courtesy of SUBARU OF AMERICA, INC.

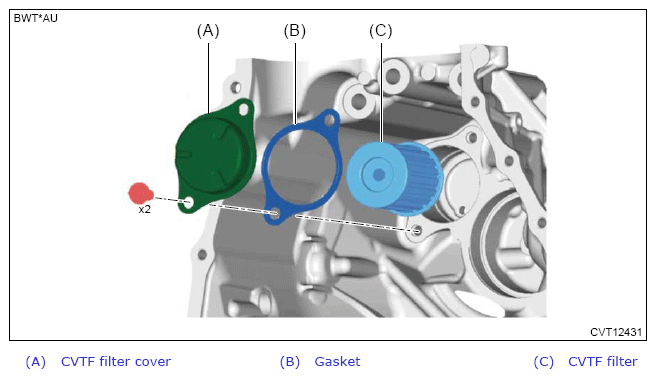

Remove the CVTF filter cover, gasket and CVTF filter.

Courtesy of SUBARU OF AMERICA, INC.

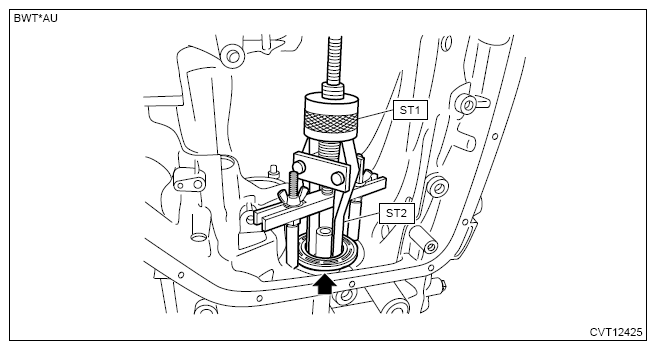

Remove the roller bearing using the ST1 and ST2.

Preparation tool:

ST1: PULLER ASSY (398527700)

ST2: CLAW (18760AA000)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
