Transmission Control Device: Removal

  1. Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>PARKING PAWL>REMOVAL .

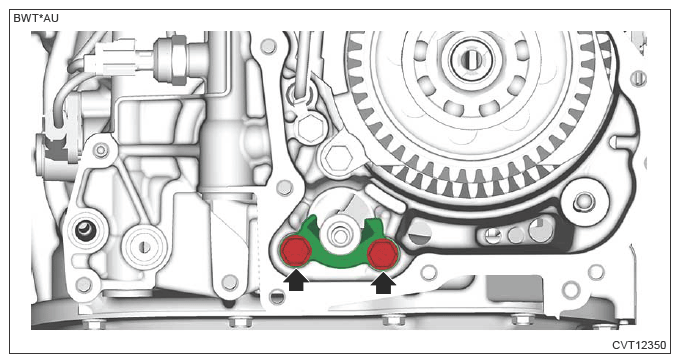

  2. Remove the parking support.
    G13950659Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>INHIBITOR SWITCH>REMOVAL .
  4. Remove the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>OIL PAN>REMOVAL .

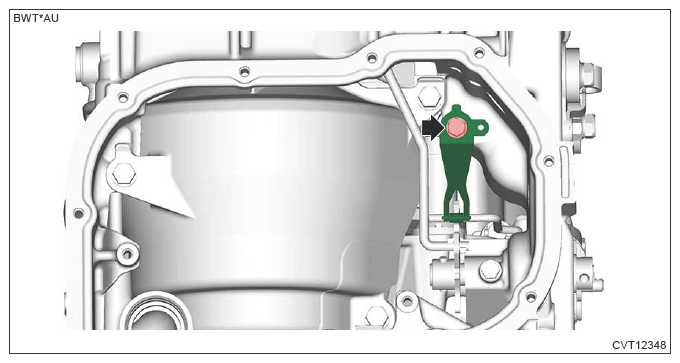

  5. Remove the detent spring.
    G13950660Courtesy of SUBARU OF AMERICA, INC.

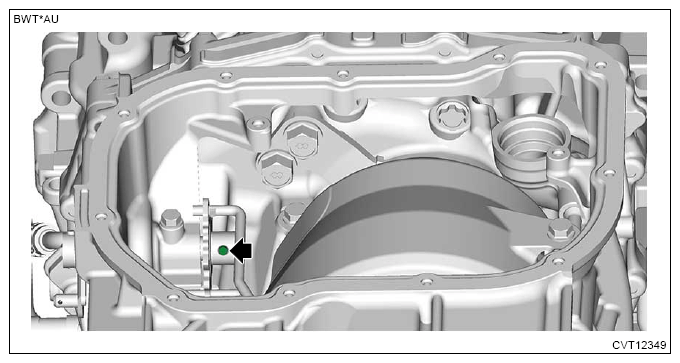

  6. Remove the spring pin.
    NOTE: Be careful not to drop the spring pin in the transmission.
    G13950661Courtesy of SUBARU OF AMERICA, INC.

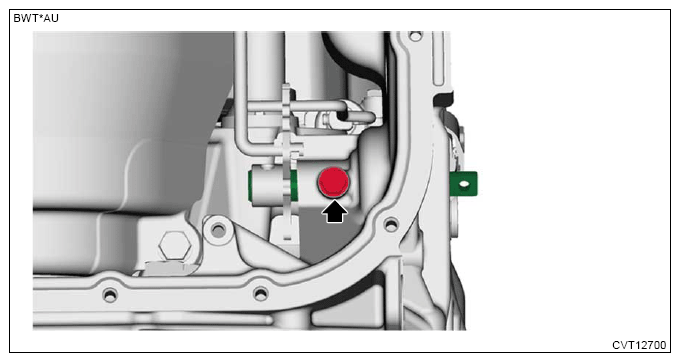

  7. Remove the shifter arm shaft.
    G13950662Courtesy of SUBARU OF AMERICA, INC.

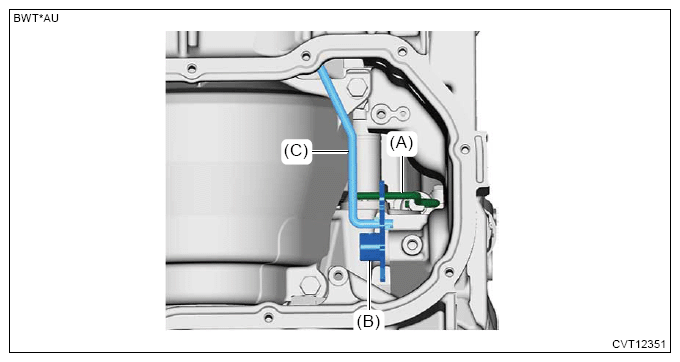

  8. Remove the manual valve rod (A) and remove the manual plate (B) and parking rod (C) as a unit.
    G13950663Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the parking rod from the manual plate.

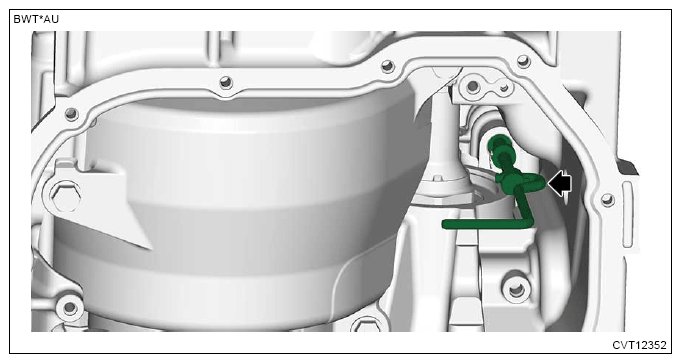

  10. Remove the manual valve.
    G13950664Courtesy of SUBARU OF AMERICA, INC.

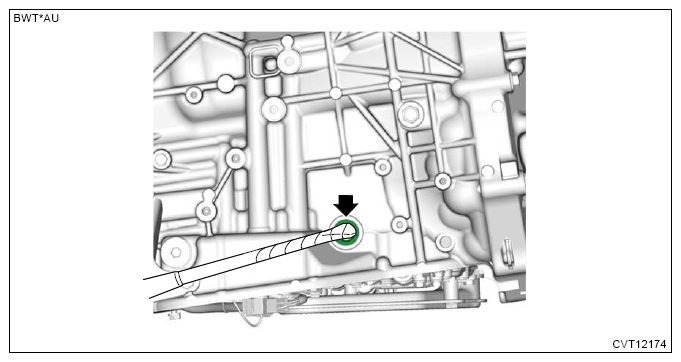

  11. Remove the oil seal using a flat tip screwdriver wrapped with protection tape.
    G13950665Courtesy of SUBARU OF AMERICA, INC.
