Transmission Harness: Installation

  1. Connect the transmission harness to the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CONTROL VALVE BODY>INSTALLATION .
  2. Connect the connector and ground terminal as shown in the figure, and install the clips.

    Tightening torque:

    13 N.m (1.3 kgf-m, 9.6 ft-lb)

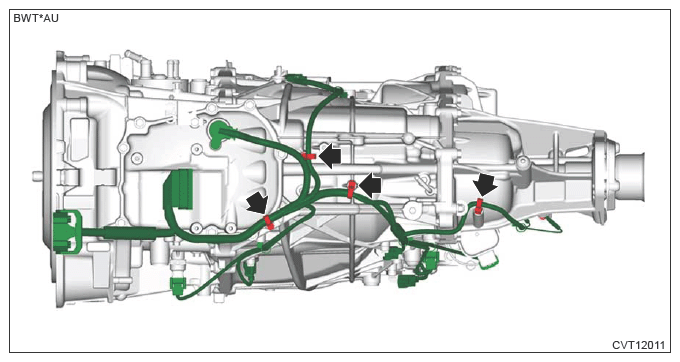

    G13950450Courtesy of SUBARU OF AMERICA, INC.

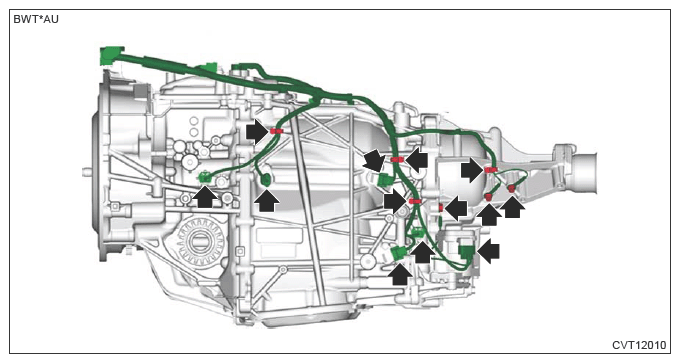

    G13950451Courtesy of SUBARU OF AMERICA, INC.

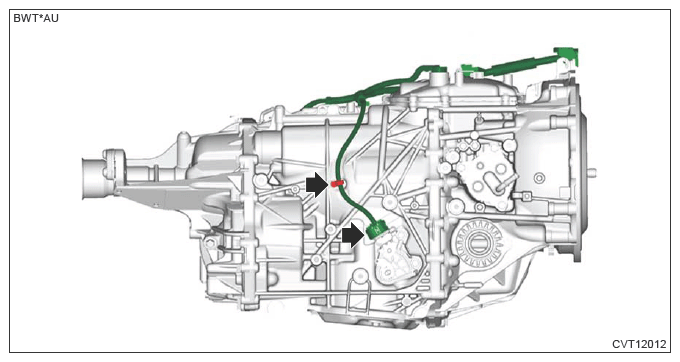

    G13950452Courtesy of SUBARU OF AMERICA, INC.
  3. Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>AIR BREATHER HOSE>INSTALLATION .
