Transmission Harness: Removal

  1. Remove the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>AIR BREATHER HOSE>REMOVAL .
  2. Disconnect the connector and ground terminal as shown in the figure, and release the clips.

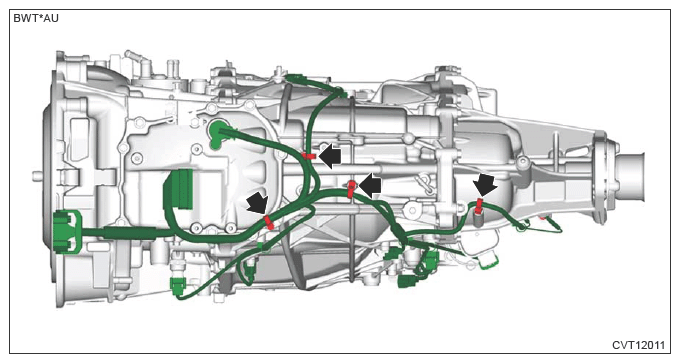

    G13950447Courtesy of SUBARU OF AMERICA, INC.

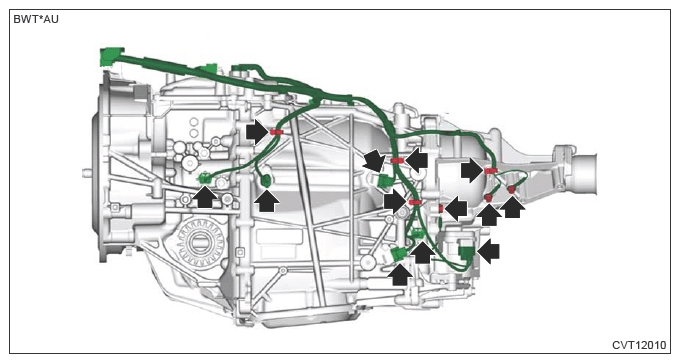

    G13950448Courtesy of SUBARU OF AMERICA, INC.

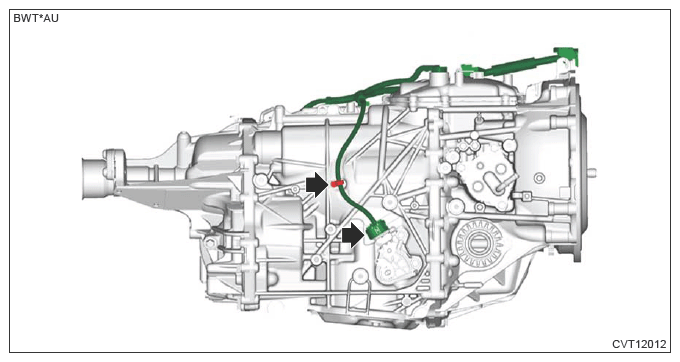

    G13950449Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the transmission harness from the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CONTROL VALVE BODY>REMOVAL .
