Data Communication Module
CAUTION:
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM".

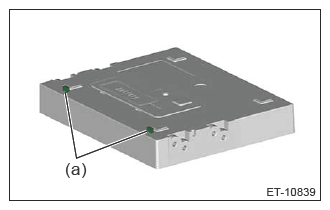

- Install the data communication module and data communication module cord.CAUTION: Align the positioning pin (a) of the data communication module with the positioning hole of the cockpit control module.
- Install the center information display assembly and the ornament panel mid passenger. Ref. to DISPLAY ASSEMBLY .
- Install the cover assembly front. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>INSTALLATION .
- Install the grip and boot. Ref. to CONTROL SYSTEMS>SELECT LEVER>INSTALLATION .
- Install the driver monitoring unit assembly or the cover center UPR. Ref. to INSTRUMENTATION/DRIVER INFO>DRIVER MONITORING UNIT>INSTALLATION .
- Install the visor assembly. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>INSTALLATION .
- Install the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.NOTE: After connecting the ground terminal to the battery sensor, place the select lever in the "P" position.
- Perform the registration if the data communication module is replaced with a new part. Ref. to ENTERTAINMENT AND MONITORING>TELEMATICS SYSTEM>OPERATION .
- Check the LED illumination status of the telematics button. Ref. to TELEMATICS SYSTEM (DIAGNOSTICS)>CHECK LIST FOR INTERVIEW>CHECK>LED ILLUMINATION STATUS LIST .
