Select Cable: Adjustment

Remove the mat center tray.

Courtesy of SUBARU OF AMERICA, INC.

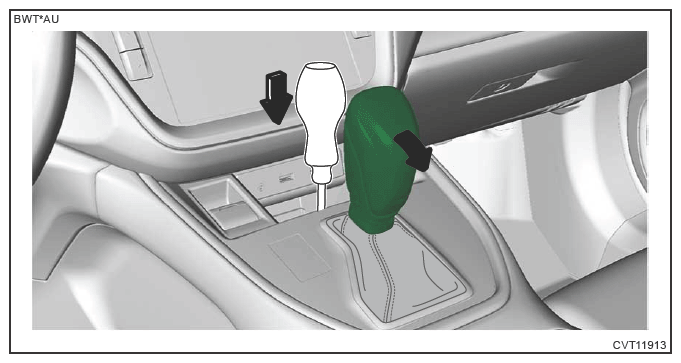

Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".

Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust cover.
H4DO model:

Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>REMOVAL .

Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL .

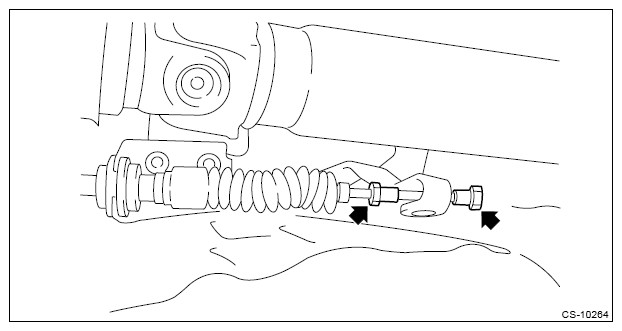

Loosen the adjusting nut (front) and adjusting nut (rear).

Courtesy of SUBARU OF AMERICA, INC.

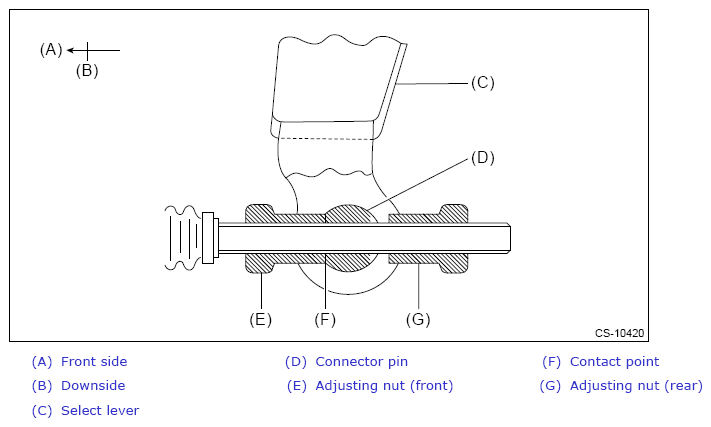

Turn the adjusting nut (front) until it lightly touches the connector pin.

Courtesy of SUBARU OF AMERICA, INC.

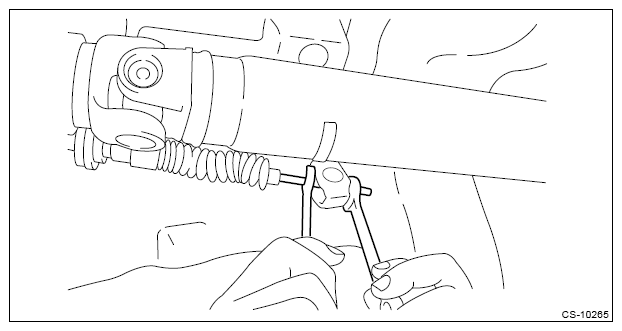

While holding the adjusting nut (front) in place, tighten the adjusting nut (rear).
Tightening torque:

7.5 N.m (0.8 kgf.m, 5.5 ft.lb)

Courtesy of SUBARU OF AMERICA, INC.
After the completion of adjustment, check that the select lever operates normally at all ranges.
