Communication For Initializing Impossible
Detecting condition:
- Defective harness connector
- Power supply circuit malfunction
- Defective MFD
- Defective CAN communication circuit
- Defective Subaru Select Monitor
Trouble symptom:
Communication is impossible between MFD and Subaru Select Monitor.

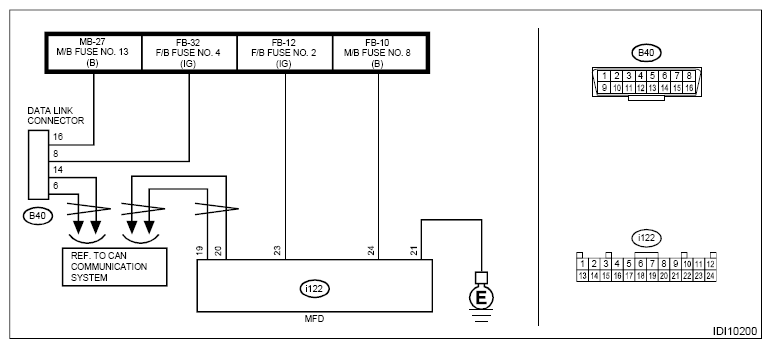

Wiring diagram:
- Multi-function display (MFD) system Refer to WIRING SYSTEM>MULTI-FUNCTION DISPLAY (MFD) SYSTEM>WIRING DIAGRAM .
- CAN communication system Refer to WIRING SYSTEM>CAN COMMUNICATION SYSTEM>WIRING DIAGRAM .
- CHECK IGNITION SWITCH.
Check the ignition switch.
Is the ignition switch ON?
Yes: Go to 2.
No: Turn the ignition switch to ON, and select «Multi-function Display» using Subaru Select Monitor.
- CHECK BATTERY.
- Turn the ignition switch to OFF.
- Check the battery. Refer to STARTING/CHARGING SYSTEMS(STI)>BATTERY>INSPECTION . Refer to STARTING/CHARGING SYSTEMS(W/O STI)>BATTERY>INSPECTION .
Is the check result OK?
Yes: Go to 3.
No: Charge or replace the battery.
- CHECK INSTALLATION OF MFD CONNECTOR.
Check the MFD connector.
Is the MFD connector inserted until it is locked?
Yes: Go to 4.
No: Insert the MFD connector to MFD until it is locked.
- CHECK LAN SYSTEM.
Perform the diagnosis for LAN system. Refer to LAN SYSTEM (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .
Is there any fault in LAN system?
Yes: Perform the inspection according to the diagnosis for LAN system.
No: Go to 5.
- CHECK SUBARU SELECT MONITOR COMMUNICATION.
- Turn the ignition switch to ON.
- Check whether communication to MFD can be executed normally.
Is communication with «Multi-function Display» possible?
Yes: Using the Subaru Select Monitor, read DTC of «Multi-function Display». Refer to MULTI-FUNCTION DISPLAY(DIAGNOSTICS)>READ DIAGNOSTIC TROUBLE CODE (DTC) .
No: Go to 7.
- CHECK SUBARU SELECT MONITOR.
Connect the Subaru Select Monitor to another vehicle to check whether the communication for initializing can be executed normally.
Is communication for initializing possible?
Yes: Go to 7.
No: Repair or replace the Subaru Select Monitor.
- CHECK MFD POWER SUPPLY CIRCUIT (OPEN OR SHORT CIRCUIT).
- Turn the ignition switch to OFF.
- Disconnect the MFD connector.
- Turn the ignition switch to ON.
- Using a tester, measure the voltage between the MFD connector and chassis ground.
Connector & terminal
(i122) No. 23 (+) - Chassis ground (-):
(i122) No. 24 (+) - Chassis ground (-):
Is the voltage 10 - 15 V?
Yes: Go to 8.
No: Repair the open or short circuit of harness or the poor contact of connector between the MFD and the battery.
- CHECK MFD GROUND CIRCUIT (OPEN).
- Turn the ignition switch to OFF.
- Measure the resistance between MFD connector and chassis ground.
Connector & terminal
(i122) No. 21 - Chassis ground:
Is the resistance less than 10 Ω?
Yes: Go to 9.
No: Repair the open circuit of the MFD ground circuit or poor contact of connector.
- CHECK POOR CONTACT OF CONNECTOR.
Check for poor contact in MFD power supply, ground circuit and data link connector.
Is there poor contact?
Yes: Repair the poor contact.
No: Replace the MFD. Refer to INSTRUMENTATION/DRIVER INFO>MULTI-FUNCTION DISPLAY (MFD) .
