Relay and Fuse: Location

Courtesy of SUBARU OF AMERICA, INC.

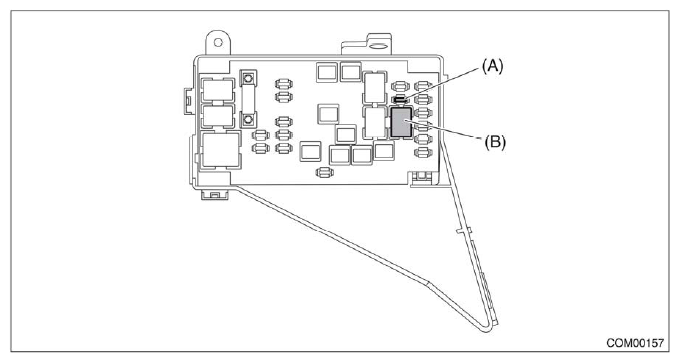

Main fuse box	Fuse 15 A (horn assembly - Hi, Lo)	(A)
Main fuse box	Horn relay	(B)

NOTE: For other related fuses, refer to the wiring diagram. Refer to WIRING SYSTEM>POWER SUPPLY CIRCUIT .
