Exhaust Side
- Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
- Remove the under cover. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

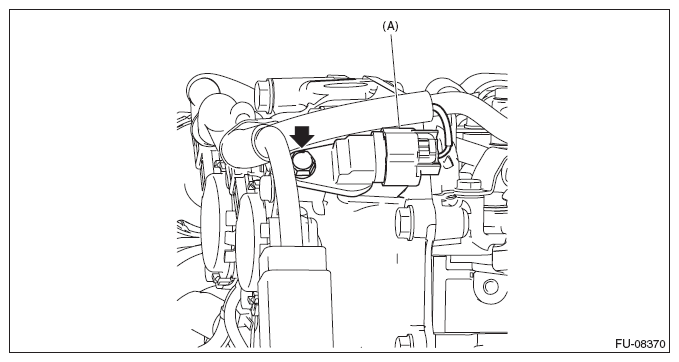

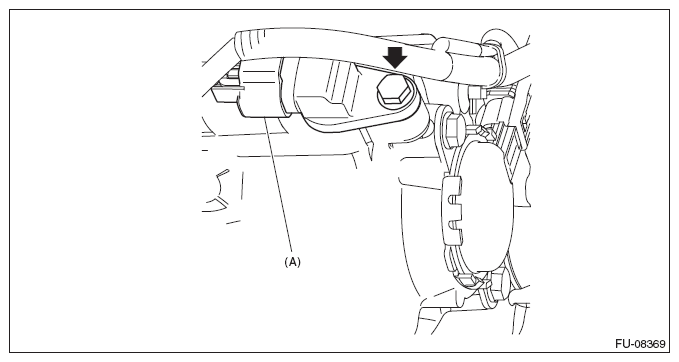

- Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.
