Crankshaft Position Sensor: Removal
- Remove the collector cover. Refer to INTAKE (INDUCTION) (W/O STI)>COLLECTOR COVER>REMOVAL .
- Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
- Remove the intercooler. Refer to INTAKE (INDUCTION) (W/O STI)>INTERCOOLER>REMOVAL .
- Remove the throttle body. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>THROTTLE BODY>REMOVAL .
- Remove the bolts securing the engine wiring harness.

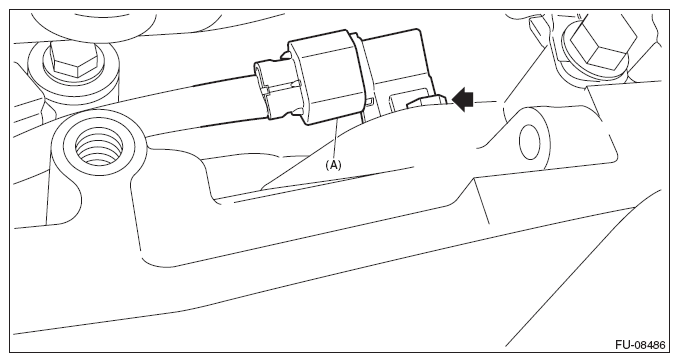

- Disconnect the connector (A) from the crankshaft position sensor, and remove the crankshaft position sensor from the cylinder block.
