Engine Wiring Harness: Installation

Set the engine wiring harness to the engine, and connect the connector.

NOTE:

If the clip is damaged, replace it with a new part.

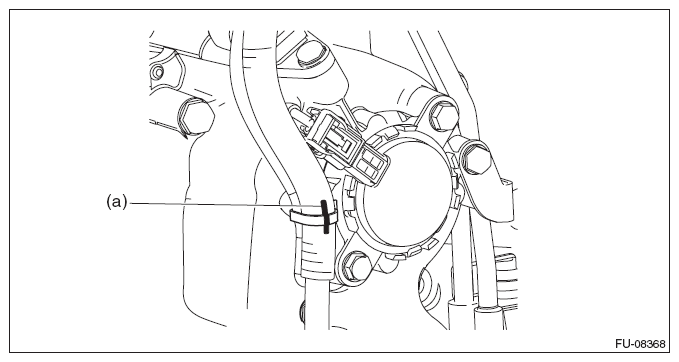

Before replacing the clip, put an alignment mark (a) on both engine wiring harness and clip to remove the clip, and then align to the alignment mark (a) to attach a new clip to the engine wiring harness.

Courtesy of SUBARU OF AMERICA, INC.

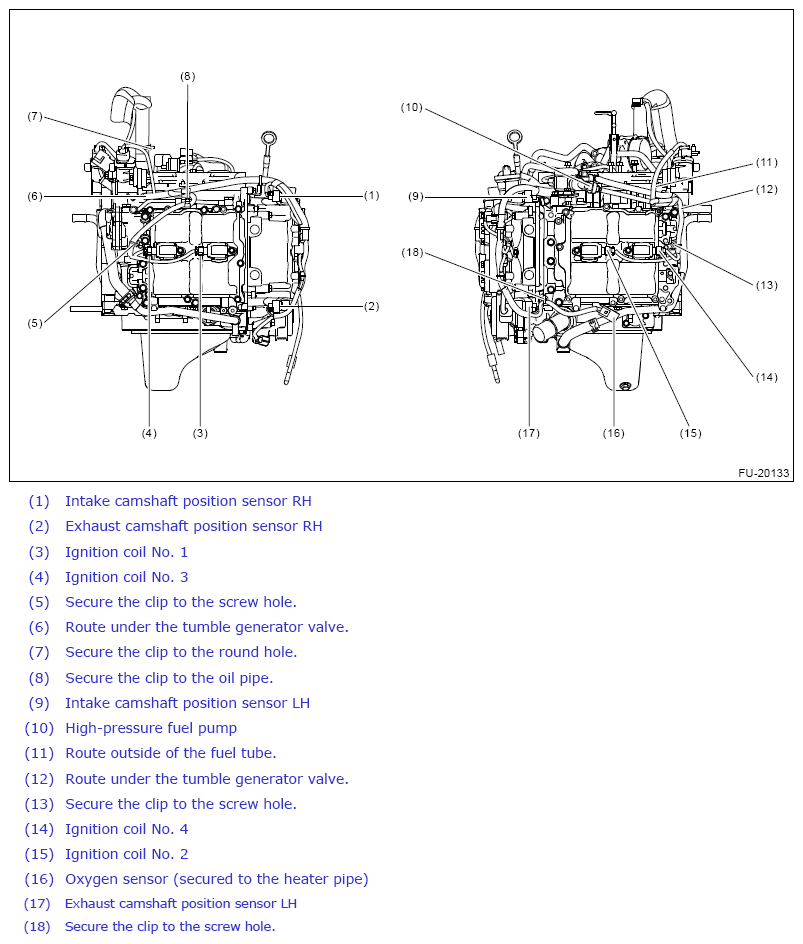

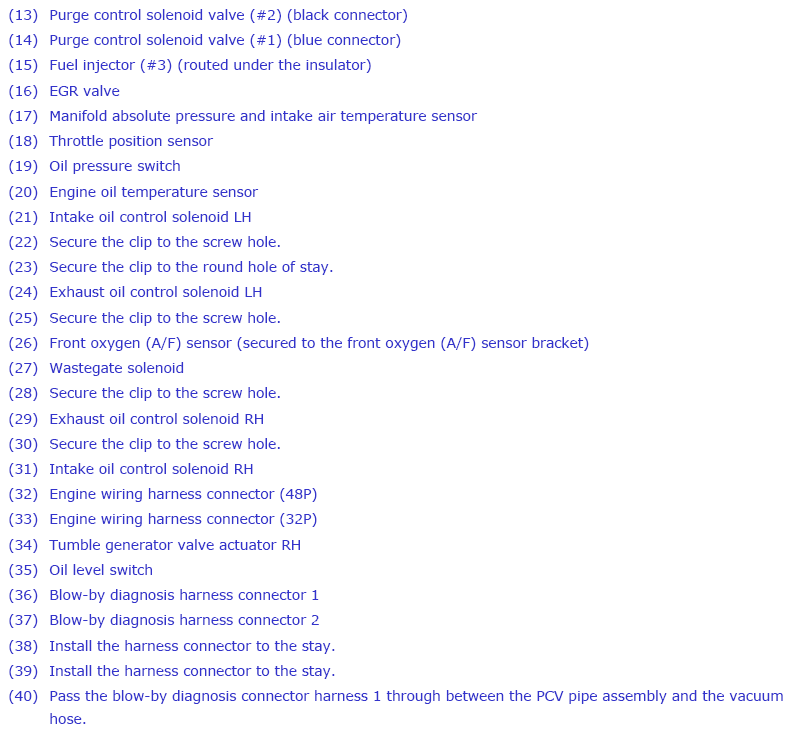

Structural diagram 1

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

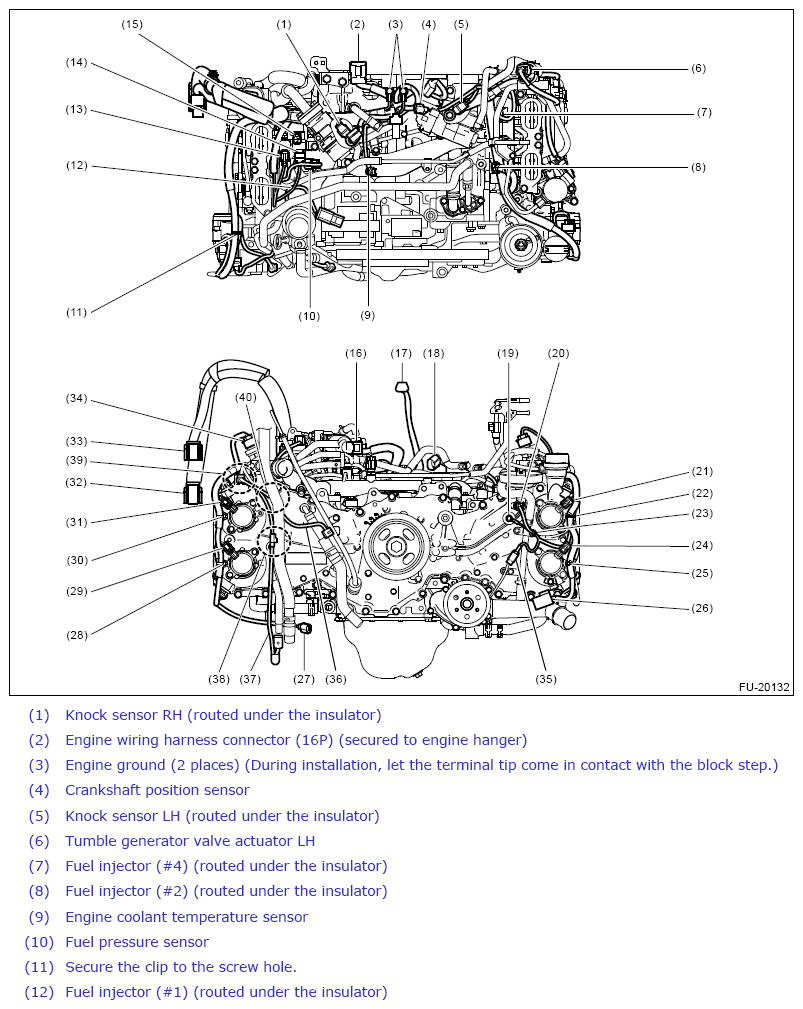

Structural diagram 2

Courtesy of SUBARU OF AMERICA, INC.

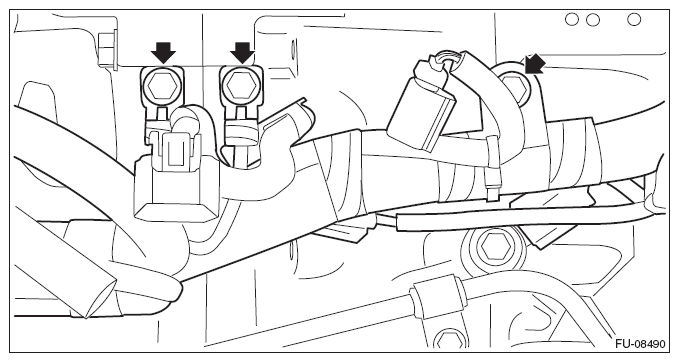

Install the engine wiring harness.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the engine control module (ECM). Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>ENGINE CONTROL MODULE (ECM)>INSTALLATION .
Install the fuel insulator. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>FUEL INSULATOR>INSTALLATION .
Install the intake manifold. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>INTAKE MANIFOLD>INSTALLATION .
Connect the ground terminal to battery sensor. Refer to NOTE>NOTE>BATTERY .
