Fuel Filler Pipe: Disassembly

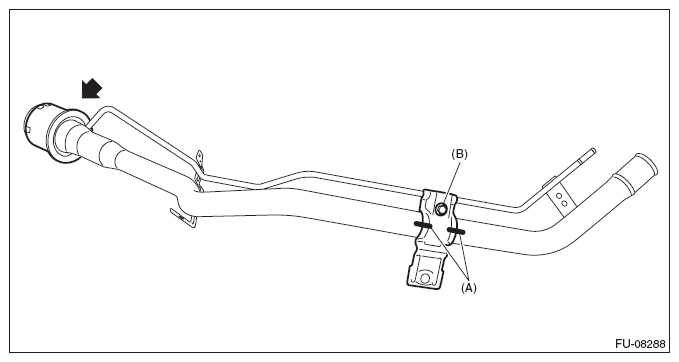

  1. Using a marker pen, make alignment marks (A) on the fuel filler pipe and the bracket.
  2. Remove the bracket bolt (B) which secures the fuel filler pipe.
  3. Remove the neck holder from the fuel filler pipe.
    G10264931Courtesy of SUBARU OF AMERICA, INC.
