Fuel Injector Relay: Removal

  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .

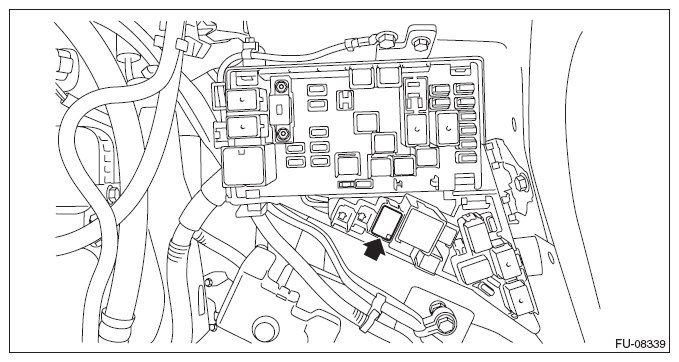

  2. Remove the fuel injector relay from main fuse box.
    G10266272Courtesy of SUBARU OF AMERICA, INC.
