Fuel Injector LH
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from the pipes using a container or cloth.
- Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
- Remove the high-pressure fuel delivery pipe assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>HIGH PRESSURE FUEL DELIVERY PIPE>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE ASSY .
- Remove the high-pressure fuel delivery pipes. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>HIGH PRESSURE FUEL DELIVERY PIPE>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE .

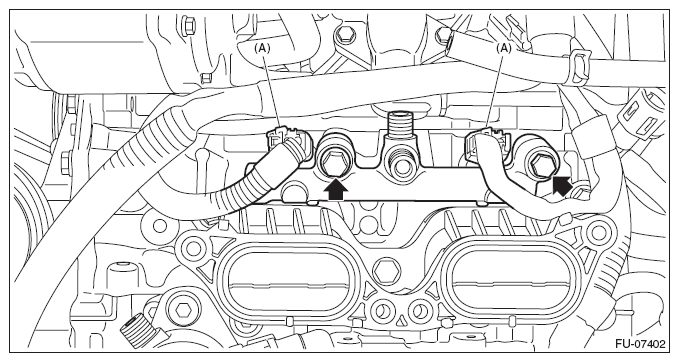

- Disconnect the connector (A) from fuel injector, and remove the fuel injector pipe LH.
- Using scissors or the like, remove the rubber cover (A) from the fuel injector.
- Remove the holder (B) and spacer (C) from the fuel injector.

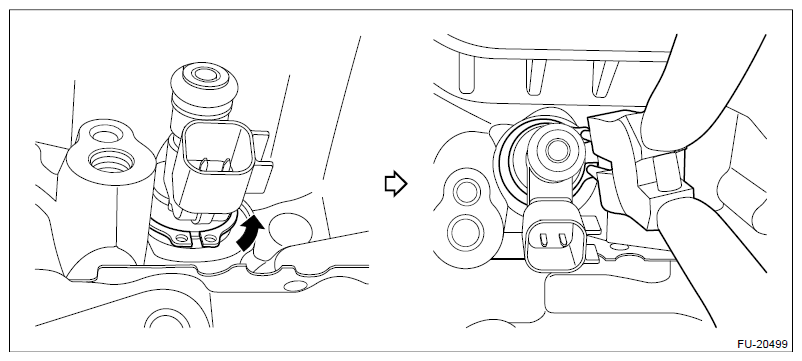

- Rotate the snap ring to remove it from the fuel injector.
- Using ST, remove the fuel injector from the cylinder head.

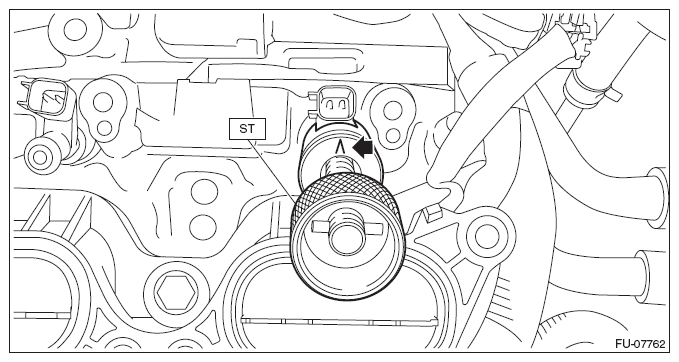

ST 18356AA000 INJECTOR REMOVER - Set the ST so that its mark faces the center of the engine.

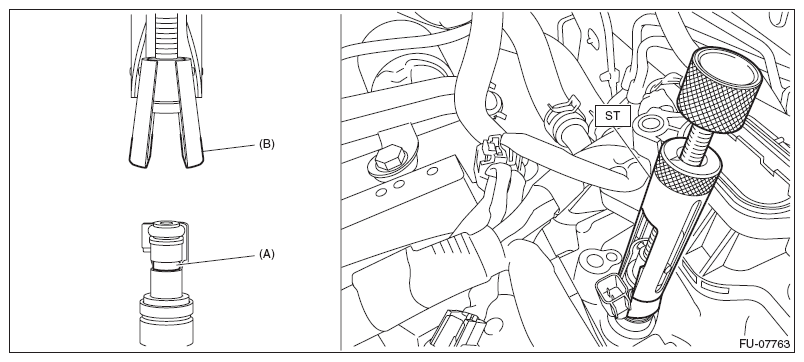

- Pinch the fuel injector groove (A) with the claw section (B) of ST.

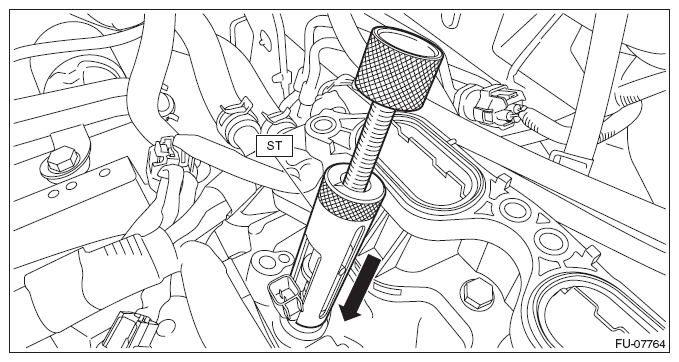

- Press the ST to the cylinder head.

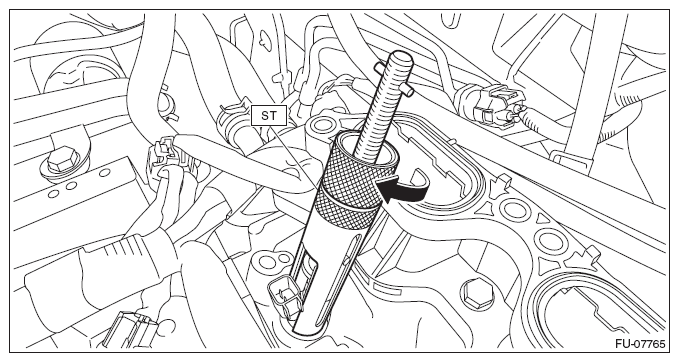

- Screw in the threaded section of the ST clockwise, and remove the fuel injector from the cylinder head.
- Set the ST so that its mark faces the center of the engine.
