Fuel Pipe Insulator No. 1
- Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
- Remove the intake manifold. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>INTAKE MANIFOLD>REMOVAL .
- Remove the clip (A) on the generator cord, and remove the fuel pipe protector.

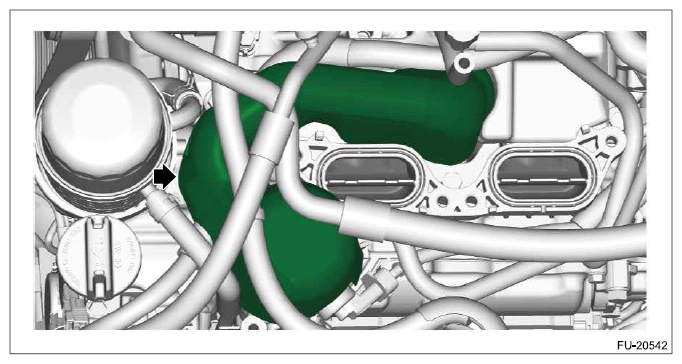

- Remove the fuel pipe insulator No. 1.
