High-Pressure Fuel Pump Case

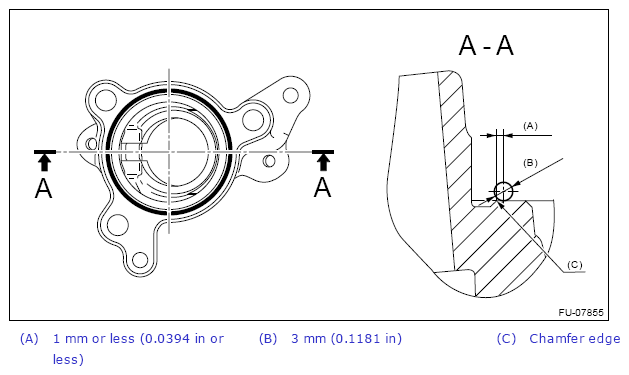

Apply liquid gasket to the mating surfaces of fuel pump case, and install the high-pressure fuel pump case.
NOTE:
- Clean the mating surface of the high-pressure fuel pump case and cam carrier assembly LH.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

Liquid gasket applying diameter:

3±1 mm (0.1181±0.0394 in)

Courtesy of SUBARU OF AMERICA, INC.

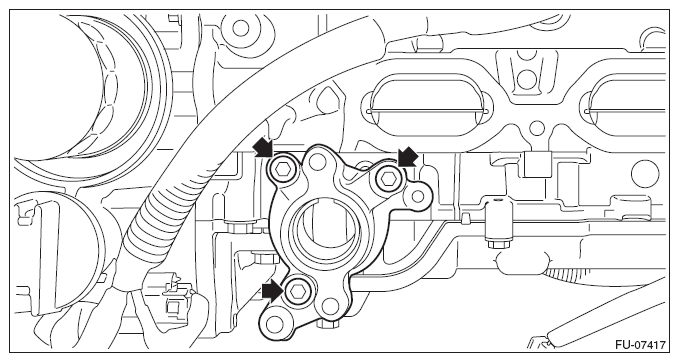

Install the high-pressure fuel pump case to the cam carrier assembly LH.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

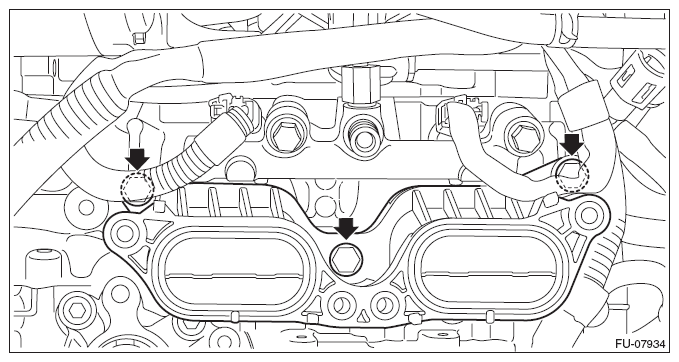

Install the air intake adapter LH to cylinder heads.
NOTE: Use a new gasket.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the high-pressure fuel pump. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>HIGH PRESSURE FUEL PUMP>INSTALLATION>HIGH-PRESSURE FUEL PUMP .
