Manifold Absolute Pressure and Intake Air Temperature Sensor: Removal
- Remove the collector cover. Refer to INTAKE (INDUCTION) (W/O STI)>COLLECTOR COVER>REMOVAL .
- Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .

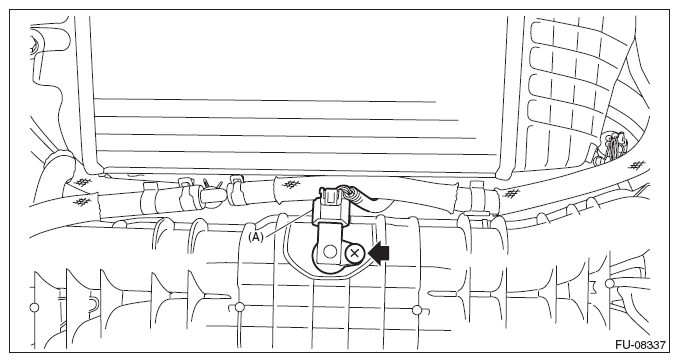

- Disconnect the connector (A) from the manifold absolute pressure & intake air temperature sensor, and remove the manifold absolute pressure & intake air temperature sensor from the intake manifold.
