Check The Mass Air Flow Sensor Unit

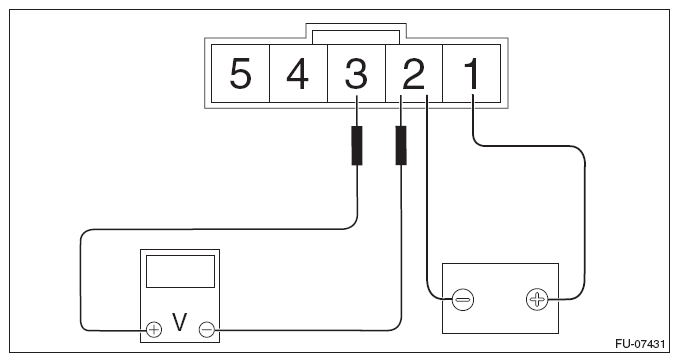

- Connect the battery positive terminal to terminal No. 1 and the battery ground terminal to terminal No. 2, and connect the circuit tester positive terminal to terminal No. 3 and the circuit tester ground terminal to terminal No. 2.

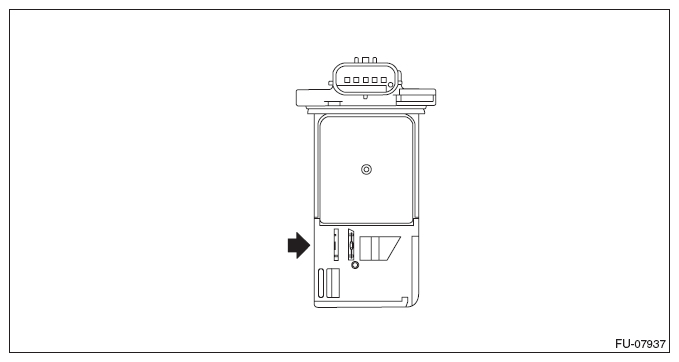

- Check the voltage changes when air is blown to the mass air flow sensor unit in arrow direction.
