Tumble Generator Valve Assembly: Removal
NOTE:
The tumble generator valve assembly is tightened together with the intake manifold.
- Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
- Remove the intake manifold. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>INTAKE MANIFOLD>REMOVAL .

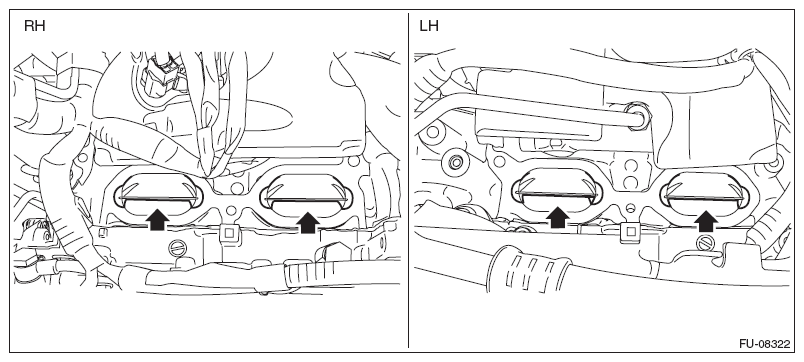

- Remove the air intake adapter from the cylinder head.

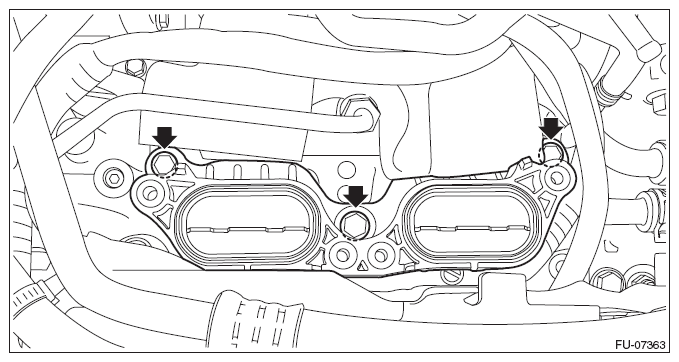

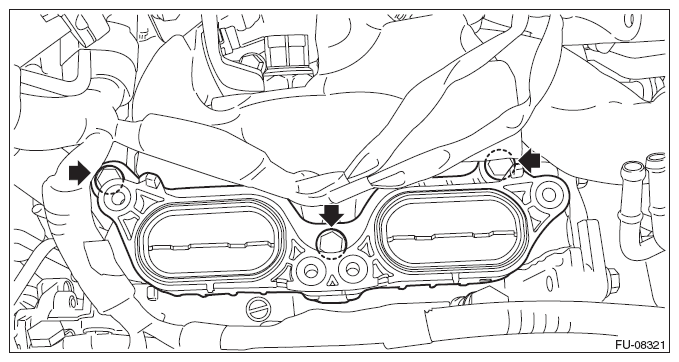

- Remove the cylinder head plate from cylinder head.
