Check Power Supply And Ground Line Of Engine Control Module (ECM)

CAUTION:

After servicing or replacing faulty parts, perform Clear Memory Mode Refer to ENGINE (DIAGNOSTICS) (W/O STI)>CLEAR MEMORY MODE>OPERATION ., and inspection mode Refer to ENGINE (DIAGNOSTICS) (W/O STI)>INSPECTION MODE>PROCEDURE .
Use the check board when measuring the ECM terminal voltage and resistance.

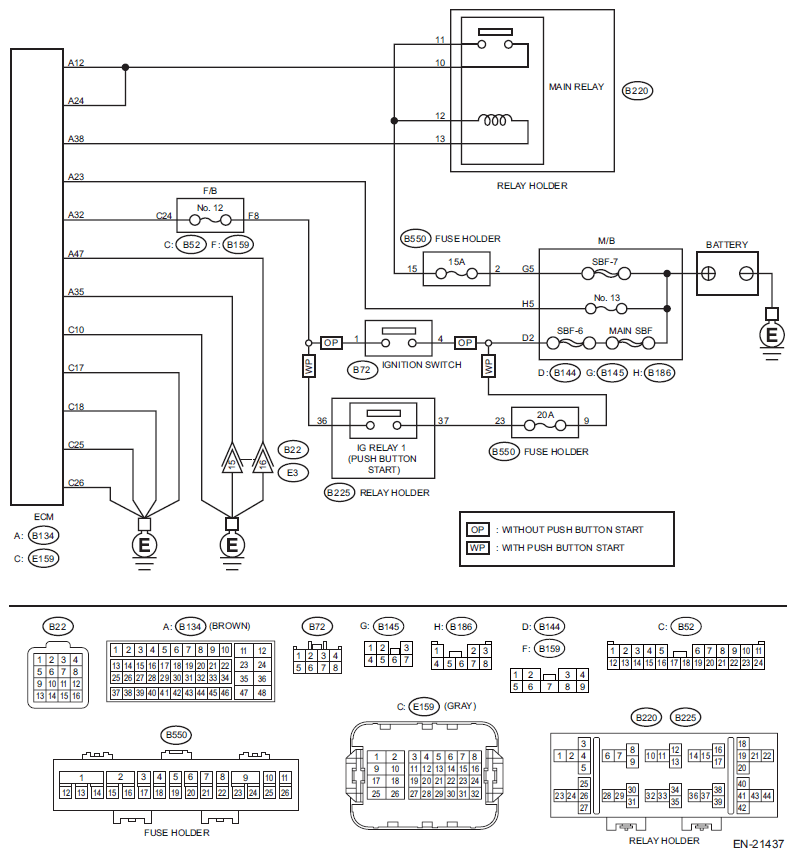

Wiring diagram:

Engine Electrical System Refer to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

CHECK MAIN RELAY.
1. Turn the ignition switch to OFF.
2. Remove the main relay.
3. Check the main relay. Refer to INSPECTION .
Is the check result OK?

Yes: Go to 2.

No: Replace the main relay. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>MAIN RELAY .
CHECK GROUND CIRCUIT FOR ECM.
1. Disconnect the connector from ECM.
2. Measure the resistance of harness between ECM connector and chassis ground.
  Connector & terminal

  (B134) No. 35 - Chassis ground:

  (B134) No. 47 - Chassis ground:

  (E159) No. 10 - Chassis ground:

  (E159) No. 17 - Chassis ground:

  (E159) No. 18 - Chassis ground:

  (E159) No. 25 - Chassis ground:

  (E159) No. 26 - Chassis ground:
Is the resistance less than 5 Ω?

Yes: Go to 3.

No: Repair the harness and connector.
NOTE:
In this case, repair the following item:
- Open circuit of harness between ECM connector and engine ground terminal
- Poor contact of coupling connector
CHECK INPUT VOLTAGE OF ECM.
1. Turn the ignition switch to ON.
2. Measure the voltage between ECM connector and chassis ground
  Connector & terminal

  (B134) No. 23 (+) - Chassis ground (-):

  (B134) No. 32 (+) - Chassis ground (-):
Is the voltage 10 V or more?

Yes: Go to 4.

No: Repair the open or ground short in the harness of power supply circuit.
CHECK INPUT VOLTAGE OF MAIN RELAY.
Measure the voltage between main relay connector and chassis ground.

Connector & terminal

(B220) No. 11 (+) - Chassis ground (-):

(B220) No. 12 (+) - Chassis ground (-):

Is the voltage 10 V or more?

Yes: Go to 5.

No: Repair the open or ground short in the harness of power supply circuit
CHECK INPUT VOLTAGE OF ECM.
1. Turn the ignition switch to OFF.
2. Install the main relay.
3. Measure the voltage between ECM connector and chassis ground.
  Connector & terminal

  (B134) No. 38 (+) - Chassis ground (-):
Is the voltage 10 V or more?

Yes: Go to 6.

No: Repair the open circuit of harness between ECM connector and main relay connector.
CHECK INPUT VOLTAGE OF ECM.
1. Connect the connector to ECM.
2. Turn the ignition switch to ON.
3. Measure the voltage between ECM connector and chassis ground.
  Connector & terminal

  (B134) No. 12 (+) - Chassis ground (-):

  (B134) No. 24 (+) - Chassis ground (-):
Is the voltage 10 V or more?

Yes: Check ignition control system. Refer to ENGINE (DIAGNOSTICS) (W/O STI)>DIAGNOSTICS FOR ENGINE STARTING FAILURE>IGNITION CONTROL SYSTEM .

No: Repair the harness and connector.
NOTE:
In this case, repair the following item:
- Open circuit in harness between ECM connector and main relay connector
- Poor contact of main relay connector
- Poor contact of ECM connector
