Drive Cycle T

DTC Item Condition Number of driving cycles on the detecting condition
P000A "A" CAMSHAFT POSITION SLOW RESPONSE BANK 1 «Coolant Temp.»: 70°C (158°F) or more 2
P000B "B" CAMSHAFT POSITION SLOW RESPONSE BANK 1 2
P000C "A" CAMSHAFT POSITION SLOW RESPONSE BANK 2 2
P000D "B" CAMSHAFT POSITION SLOW RESPONSE BANK 2 2
P0011 "A" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 1 2
P0014 "B" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 1 2
P0021 "A" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 2 2
P0024 "B" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 2 2
WARNING: When performing the drive cycle T on the public road, be very careful of the traffic condition and the safe driving must be the high priority.
  1. Using the Subaru Select Monitor, perform the clear memory for «Engine». Refer to ENGINE (DIAGNOSTICS) (W/O STI)>CLEAR MEMORY MODE>OPERATION .

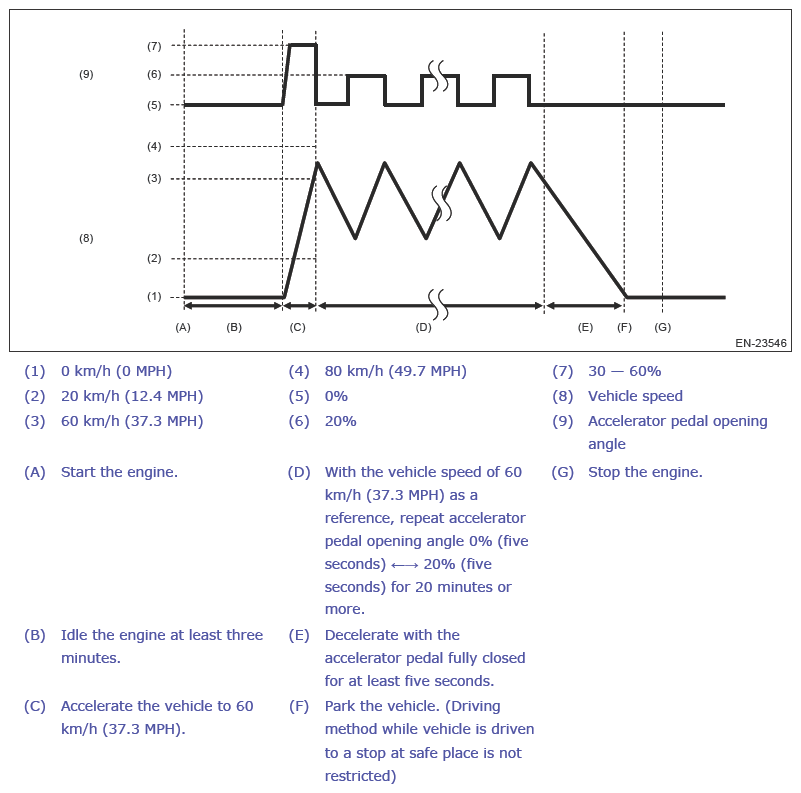

  2. Drive according to the drive pattern described below.
    G13650442Courtesy of SUBARU OF AMERICA, INC.
    NOTE: In pattern (D), it is acceptable to stop the vehicle according to the traffic condition. Drive the vehicle until the total time of accelerator opening angle 0% (five seconds) ↔ 20% (five seconds) becomes 20 minutes or more.
  3. Read the temporary code using the Subaru Select Monitor or general scan tool. Refer to ENGINE (DIAGNOSTICS) (W/O STI)>READ DIAGNOSTIC TROUBLE CODE (DTC)>OPERATION .
