Section 11 (Entertainment System): Camera: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the trim panel trunk lid. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL
  3. Remove the garnish assembly trunk. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK LID GARNISH>REMOVAL

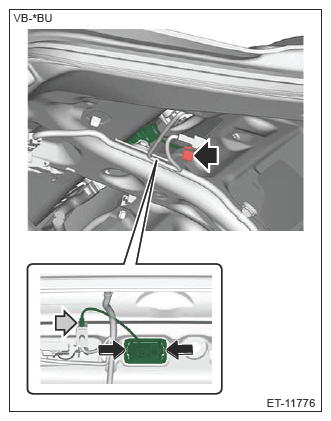

  4. Remove the rearview camera assembly.
    1. Remove the connector clip, and disconnect the connector.
    2. Disconnect the claws and then remove the rearview camera assembly.
      G14612518Courtesy of SUBARU OF AMERICA, INC.
