Cockpit Display: Disassembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center information display.

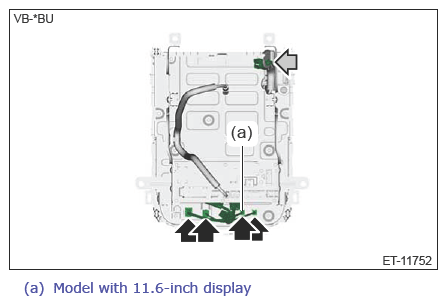

Remove the connector clips, and disconnect each connector.

Courtesy of SUBARU OF AMERICA, INC.

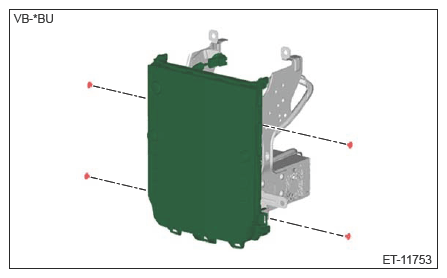

Remove the screws and remove the center information display.

Courtesy of SUBARU OF AMERICA, INC.

Remove the switch hazard. Ref. to LIGHTING SYSTEM>HAZARD SWITCH>REMOVAL

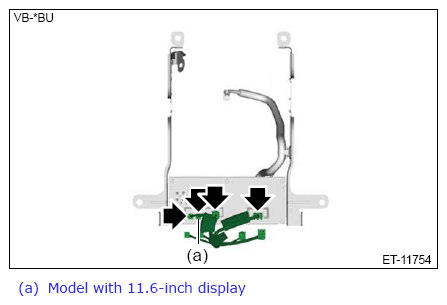

Disconnect the connectors, and remove the cord assembly CCM.

Courtesy of SUBARU OF AMERICA, INC.

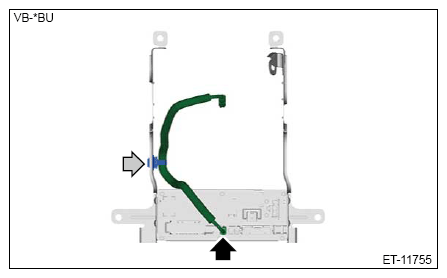

Remove the connector and cable clip and remove the cable CCM.

Courtesy of SUBARU OF AMERICA, INC.

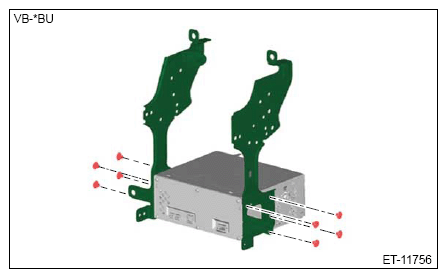

Remove the screws and remove the unit bracket from the cockpit control module.

Courtesy of SUBARU OF AMERICA, INC.
