Cockpit Display: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the ornament panel mid passenger and panel assembly center. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CLUSTER>REMOVAL
  3. Remove the center information display assembly.

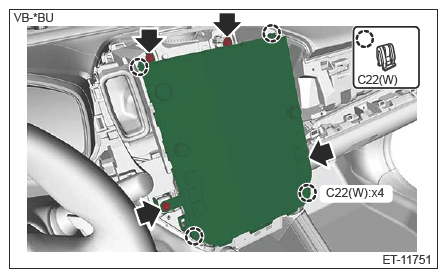

    1. Remove the bolt and release the clip.
      G14612492Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connectors, and then remove the center information display assembly.
  4. Remove the data communication module. (Model with telematics) Ref. to ENTERTAINMENT & MONITORING>DATA COMMUNICATION MODULE>REMOVAL>DATA COMMUNICATION MODULE
  5. Remove the cockpit control module. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>DISASSEMBLY
