Center Information Display Assembly
WARNING:
This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

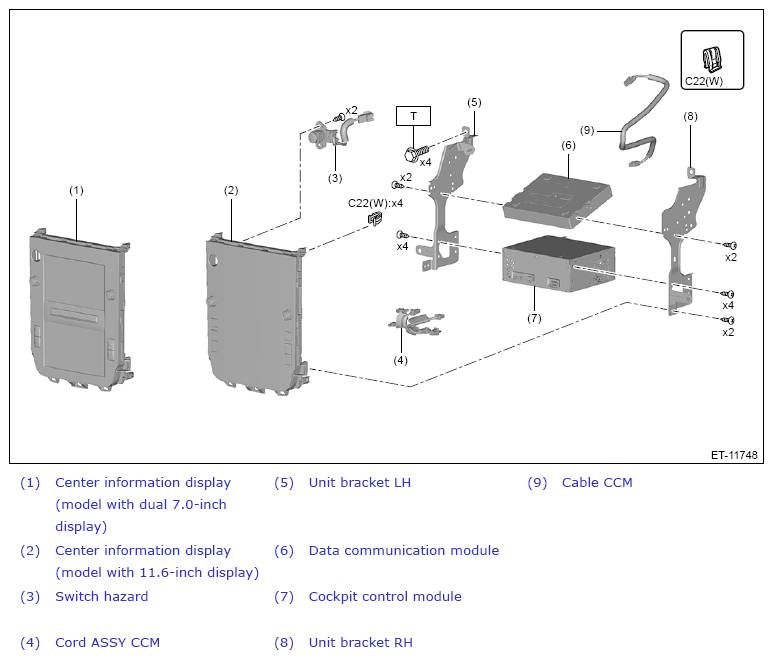

Fig 1: Center Information Display Assembly Components (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
