Brake Line
- During the operation, remove the fuse of electric brake booster from the sub fuse box to prevent the electric brake booster from starting. (Electric brake booster model)
- Do not let brake fluid come into contact with the painted surface of the vehicle. Wash away with water immediately and wipe off if it is spilled by accident.
- Do not mix different kinds of brake fluid.
- Do not allow water or foreign matter to enter the reservoir tank.
- Always use new brake fluid when replacing or refilling the brake fluid.
- During the operation, keep the reservoir tank filled with brake fluid at "MIN level" or higher to prevent entry of air.
- After air bleeding operation, wipe off the brake fluid around each bleeder screw and the reservoir tank.
For convenience and safety, perform the work with 2 people.

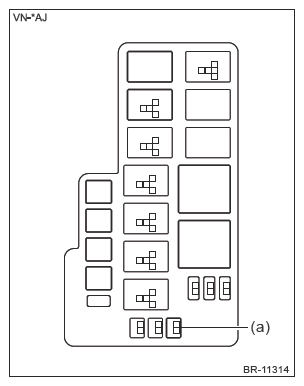

- Remove the fuse (a) of electric brake booster from the sub fuse box. (Electric brake booster model)NOTE:
This operation is not required if the ground terminal is already removed from the battery sensor.
- When the master cylinder assembly is replaced or the reservoir tank is empty, bleed air from the master cylinder assembly before bleeding air from the brake line. Ref. to BRAKE>AIR BLEEDING>PROCEDURE>MASTER CYLINDER .
- Add the brake fluid to the "MAX".

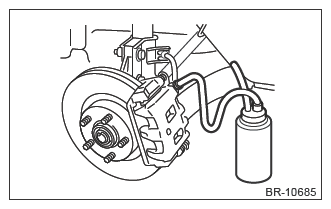

- Connect a transparent vinyl tube, etc. to the bleeder screw and a collection container.
- Loosen the bleeder screw, and then repeat the full stroke depressing operation of the brake pedal, until brake fluid in the tube has no more air bubbles.NOTE:
Air bubbles are removed after repeating the depressing operation 15 times or more for the front caliper, and 20 times or more for the rear caliper.
- Perform the steps 3 to 5 above on each brake caliper.NOTE:
Perform in the order starting from the front RH → front LH → rear LH → rear RH.
- Tighten the loosened bleeder screw, repeat firmly depressing of the brake pedal quickly 5 to 6 times, and then depress and hold the brake pedal.
- Loosen the bleeder screw to drain the brake fluid. When the brake pedal reaches the full stroke position, immediately tighten the bleeder screw and return the brake pedal.
- Repeat steps 7 and 8 until there are no more air bubbles in the tube.
- Perform the steps 7 to 9 above on each brake caliper.NOTE:
Perform in the order starting from the front RH → front LH → rear LH → rear RH.
- Perform the sequence control mode for the VDC Control Module & H/U in both ABS and VDC systems.CAUTION:
- If there is a possibility that air enters the pressure control section in the VDC Control Module & H/U, perform steps 12 to 17 .
- For normal air bleeding operation, do not operate the sequence control for the VDC Control Module & H/U. (Operating the sequence control may let air in the normal air bleeding passages move to the pressure control section.)
NOTE:- Normal air bleeding operation does not help bleed air that enters the pressure control section in the VDC Control Module & H/U.
- If there is a possibility that air enters the pressure control section in the VDC Control Module & H/U (if ABS or VDC operates with air contained in the normal air bleeding passage), perform the sequence control mode for both of the ABS and VDC systems.
- Perform the ABS sequence control mode. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>ABS SEQUENCE CONTROL
.CAUTION:
Be sure to perform the ABS sequence control mode first.
- Perform the air bleeding operation of steps 4 and 5 for the bleeder screw on each caliper.NOTE:
- Perform in the order starting from the front RH → front LH → rear LH → rear RH.
- As a reference, the number of the full stroke depressing operation is six times.
- Perform the VDC sequence control mode. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC SEQUENCE CONTROL .
- Perform the air bleeding operation of steps 4 and 5 for the bleeder screw on each caliper.
- Repeat steps 12 to 15 for three cycles.
- 17. In case air still remains at step 16., repeat steps 12 to 15 again until all air is removed.
- Add the brake fluid to the "MAX".
- Tighten each bleeder screw to the specified torque.
Tightening torque:
Front: 8 N.m (0.8 kgf-m, 5.9 ft-lb)
Rear (except for the electronic parking brake model): 8 N.m (0.8 kgf-m, 5.9 ft-lb)
Rear (electronic parking brake model): 17 N.m (1.7 kgf-m, 12.5 ft-lb)
- Install the bleeder cap to each bleeder screw.
- Install the fuse (a) of electric brake booster. (Electric brake booster model)NOTE:
Perform this operation only when the fuse of electric brake booster is removed.
- Check that the electric brake booster operates normally. (Electric brake booster model)
- Check that there are no brake fluid leaks at the flare nut portion or in the entire brake system.
- After inspection, wipe off the brake fluid around each bleeder screw and the reservoir tank.
- Perform a road test and ensure that the brakes operate normally.
