Brake Pedal: Disassembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

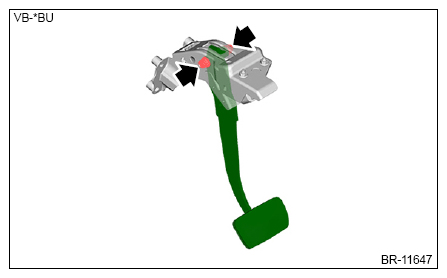

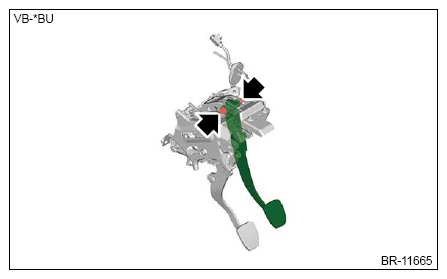

Remove the bolt and nut, and then remove the pedal COMPL brake from the bracket COMPL pedal.
CAUTION:
Turn and remove the nut while holding the bolt side.

MT model

Courtesy of SUBARU OF AMERICA, INC.
- CVT model
Courtesy of SUBARU OF AMERICA, INC.

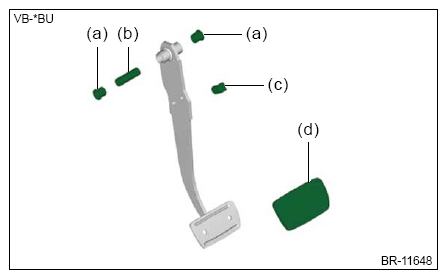

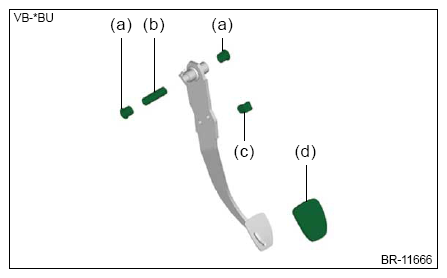

Remove the bushing (a), spacer (b), stopper (c) and pedal pad (d) from the pedal COMPL brake.
- MT model
Courtesy of SUBARU OF AMERICA, INC.
- CVT model
Courtesy of SUBARU OF AMERICA, INC.
