CVT Model
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
- Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
- Remove the duct foot driver. Ref. to AIR CONDITIONER>AIR VENT DUCT>REMOVAL>FOOT DUCT .
- Remove the universal joint assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>UNIVERSAL JOINT>REMOVAL
.CAUTION:
To prevent damage to the universal joint assembly steering and improper steering effort, make sure to remove the universal joint assembly steering.
- Remove the column assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL .
- Remove the pedal assembly brake.
- Disconnect the stop light switch assembly connector.

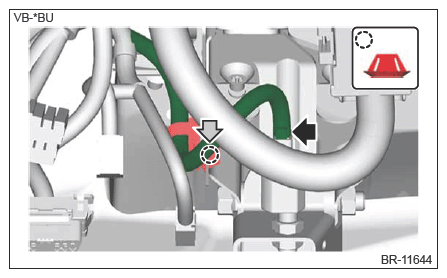

- Disconnect the harness from the bracket COMPL pedal.

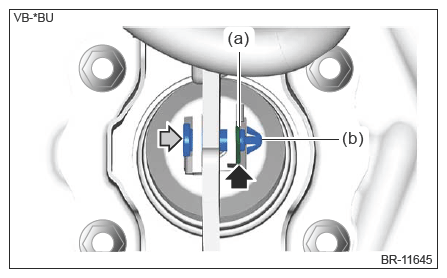

- Remove the snap pin (a) and clevis pin (b), and remove the operating rod from the pedal COMPL brake.CAUTION:
- Be careful not to apply excessive force to the operating rod when handling the operating rod. The angle may change by ±3°, and it may result in damage to power piston cylinder.
- Do not change the push rod length.

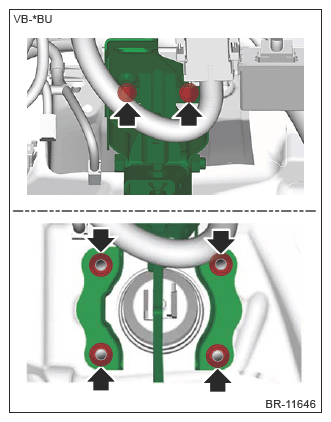

- Remove the bolt and nut, and then detach the pedal assembly brake.
- Remove the stop light switch assembly. Ref. to BRAKE>STOP LIGHT SWITCH>REMOVAL .NOTE:
Perform this procedure only when required.
