Mt Model

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION  .

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .
  3. Drain the brake fluid. Ref. to CLUTCH SYSTEM>CLUTCH FLUID .

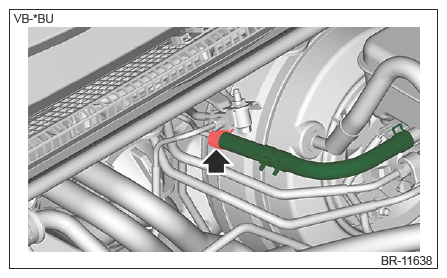

  4. Remove the hose clamp and disconnect the reservoir hose assembly.
    G14602308Courtesy of SUBARU OF AMERICA, INC.

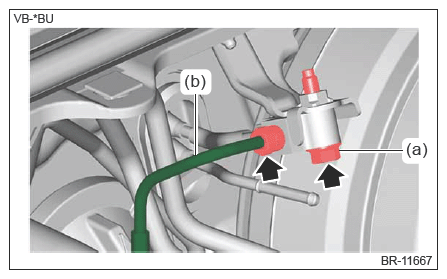

  5. Remove the bolt (a) and the clutch pipe B (b) from the two-way connector.
    G14602309Courtesy of SUBARU OF AMERICA, INC.

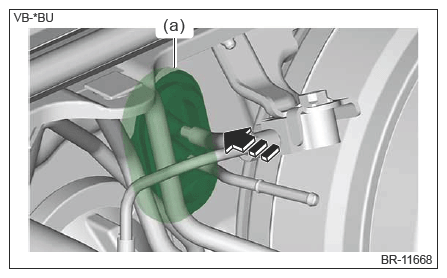

  6. Push in the grommet (a) toward the vehicle compartment.
    G14602310Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  8. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
  9. Remove the duct foot driver. Ref. to AIR CONDITIONER>AIR VENT DUCT>REMOVAL>FOOT DUCT .
  10. Remove the universal joint assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>UNIVERSAL JOINT>REMOVAL .
    CAUTION:

    To prevent damage to the universal joint assembly steering and improper steering effort, make sure to remove the universal joint assembly steering.

  11. Remove the column assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL .

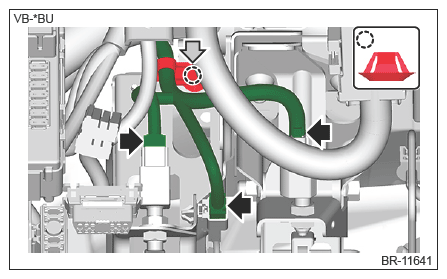

  12. Disconnect connectors.
    1. Disconnect the harness from the bracket COMPL pedal.
    2. Disconnect connectors.
    G14602311Courtesy of SUBARU OF AMERICA, INC.

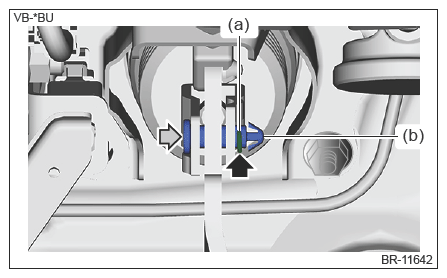

  13. Remove the snap pin (a) and clevis pin (b), and remove the operating rod from the pedal COMPL brake.
    CAUTION:
    • Be careful not to apply excessive force to the operating rod when handling the operating rod. The angle may change by ±3°, and it may result in damage to power piston cylinder.
    • Do not change the push rod length.
    G14602312Courtesy of SUBARU OF AMERICA, INC.

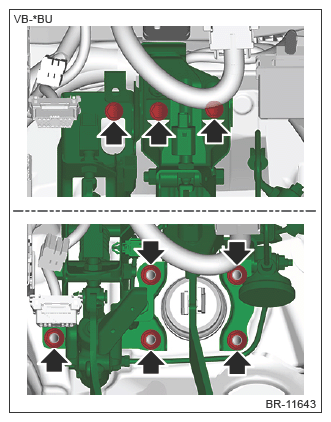

  14. Remove the bolt and nut, and then detach the pedal assembly.
    CAUTION:

    Place vinyl, etc. in order not to drop the brake fluid to the floor carpet.

    G14602313Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the stop light switch assembly. Ref. to BRAKE>STOP LIGHT SWITCH>REMOVAL .
    NOTE:

    Perform this procedure only when required.
