Front Brake Pipe
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- When installing the brake pipe, do not bend.
- After installing the brake hoses, make sure that they do not contact the tires or suspension assembly, etc.
- Install the pipe assembly front ABS.
- Install the pipe assembly front ABS to the pipe clamp and clip.
- Install the pipe assembly front ABS using a flare nut wrench and a crowfoot wrench.
NOTE:If the work can be performed with the front and back sides reversed, it is also possible to use a 6-point crowfoot wrench.
Tightening torque:
Calculation formula

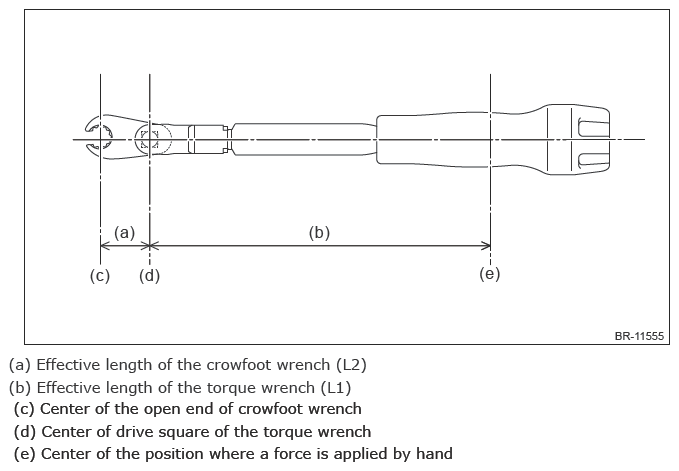

T = 15 N.m (1.5 kgf-m, 11.1 ft-lb) x L1/(L1 + L2)
T: Reading of the torque wrench
L1: Effective length of the torque wrench
L2: Effective length of the crowfoot wrench
NOTE:If the effective length of the tool used is unknown, consult the manufacturer of the tool.
- Install the vacuum booster assembly. (Except for electric brake booster model) Ref. to BRAKE>BRAKE BOOSTER>INSTALLATION>EXCEPT FOR ELECTRIC BRAKE BOOSTER MODEL .
- Install the electric booster assembly. (Electric brake booster model) Ref. to BRAKE>BRAKE BOOSTER>INSTALLATION>ELECTRIC BRAKE BOOSTER MODEL .
- Install the engine control module (ECM). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>ENGINE CONTROL MODULE (ECM)>INSTALLATION .
- Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .
- Install the crossmember support rear RH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>INSTALLATION .
- Bleed air from the brake system. Ref. to BRAKE>AIR BLEEDING>PROCEDURE .
- Install the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
