Front Brake Pipe

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION  .
  • When removing the brake pipe, do not bend.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the crossmember support rear RH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  4. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .
  5. Remove the engine control module (ECM). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>ENGINE CONTROL MODULE (ECM)>REMOVAL .
  6. Remove the vacuum booster assembly. (Except for electric brake booster model) Ref. to BRAKE>BRAKE BOOSTER>REMOVAL>EXCEPT FOR ELECTRIC BRAKE BOOSTER MODEL .
  7. Remove the electric booster assembly. (Electric brake booster model) Ref. to BRAKE>BRAKE BOOSTER>REMOVAL>ELECTRIC BRAKE BOOSTER MODEL .
  8. Remove the pipe assembly front ABS.

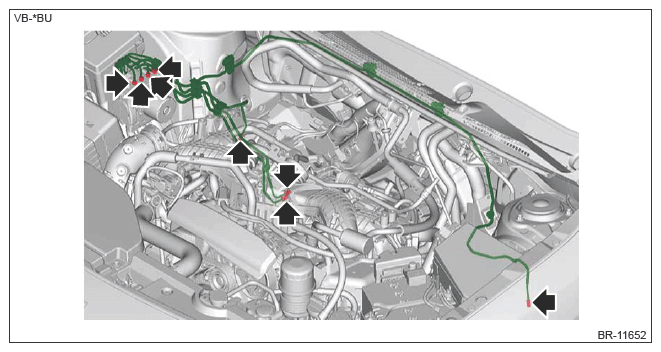

    1. Separate pipe assembly front ABS using a flare nut wrench.
      G14602301Courtesy of SUBARU OF AMERICA, INC.

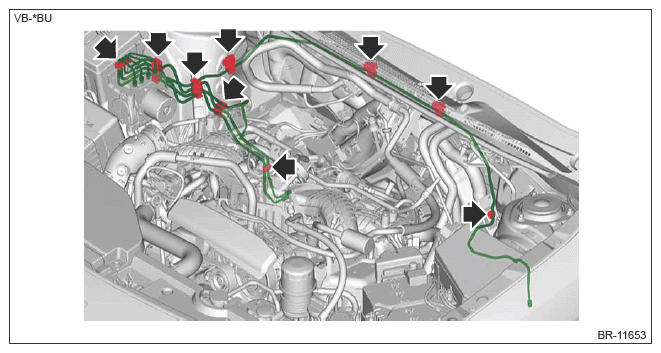

    2. Remove the pipe assembly front ABS from the clamp and clip.
      G14602302Courtesy of SUBARU OF AMERICA, INC.
