Front Brake Pad: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

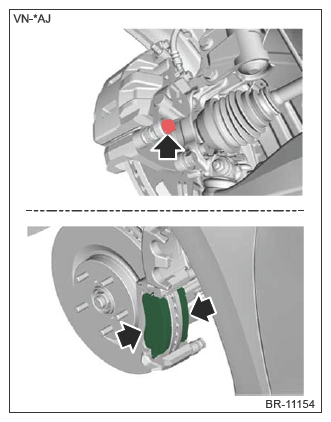

Remove the pad disc brake front.
1. Remove the lower bolt.
2. Raise the caliper body and remove the pad disc brake front.
  NOTE:
  Do not disconnect the brake hose from the caliper body.
Courtesy of SUBARU OF AMERICA, INC.

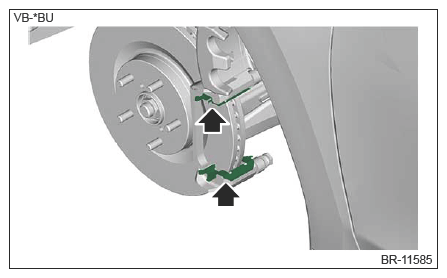

Remove the pad clip.

Courtesy of SUBARU OF AMERICA, INC.
