Front Disc Brake Assembly: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.
Prepare a container to catch grease or oil, etc. If any grease or oil spills, wipe it off and clean immediately to prevent from penetrating into floor or flowing outside.

Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

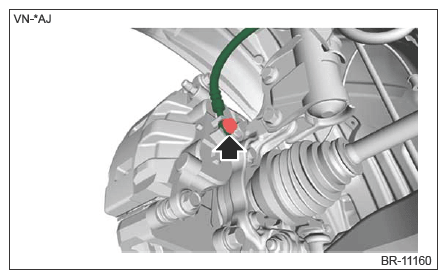

Remove the bolts and then remove the brake hose front.

Courtesy of SUBARU OF AMERICA, INC.

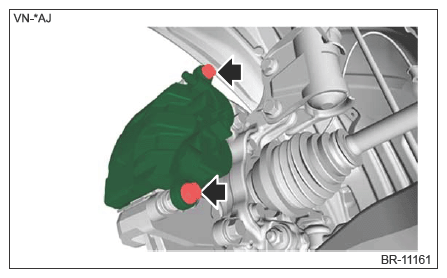

Remove the bolt, and remove the caliper body.

Courtesy of SUBARU OF AMERICA, INC.

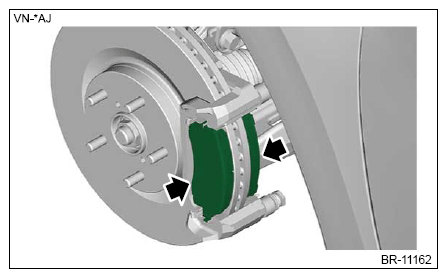

Remove the pad disc brake front.

Courtesy of SUBARU OF AMERICA, INC.

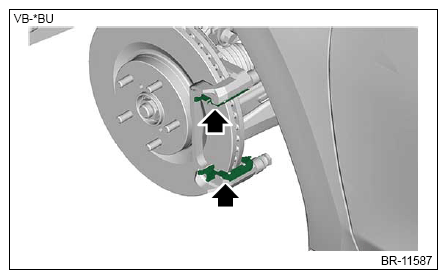

Remove the pad clip.

Courtesy of SUBARU OF AMERICA, INC.

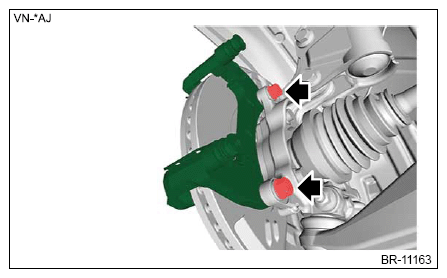

Remove the mounting bolts, and then remove the support front disc brake.

Courtesy of SUBARU OF AMERICA, INC.
