Master Cylinder: Disassembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the oil reservoir COMPL.
1. Place the master cylinder assembly between aluminum plates and fix it on a vise.
  CAUTION:
  Be careful not to tighten a vise excessively.

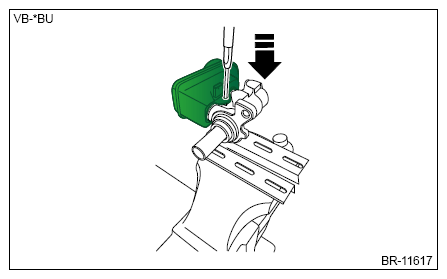

2. Drive out the pin using a punch and a hammer to remove the oil reservoir COMPL.
Courtesy of SUBARU OF AMERICA, INC.

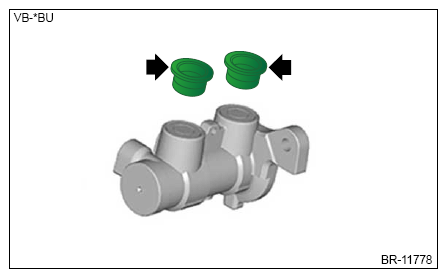

Remove the seal reservoir from the master cylinder assembly.
- Except for electric brake booster model
Courtesy of SUBARU OF AMERICA, INC.
- Electric brake booster model
Courtesy of SUBARU OF AMERICA, INC.
