System Block Diagram

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

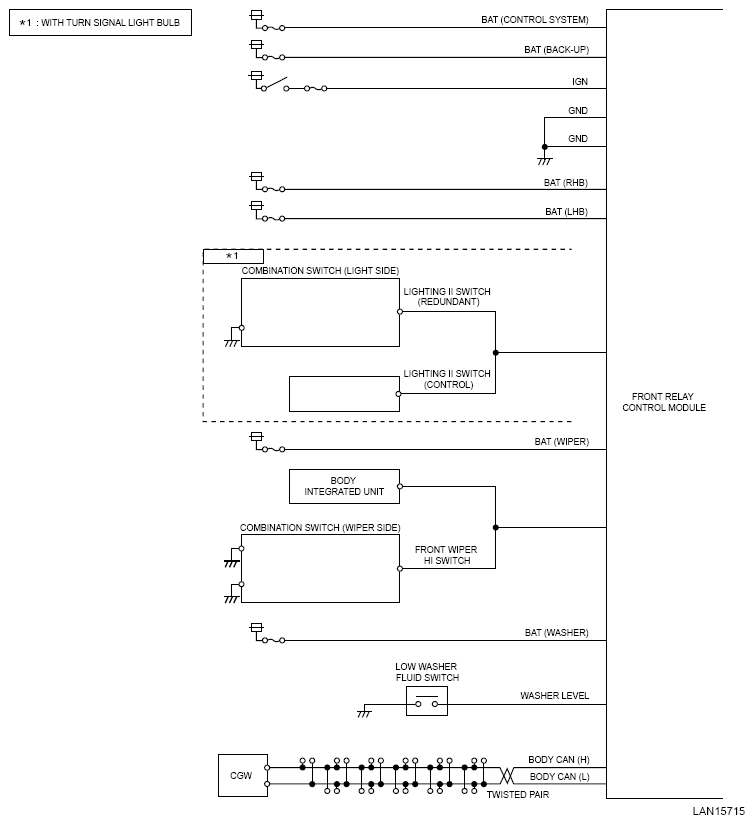

G14615495Courtesy of SUBARU OF AMERICA, INC.

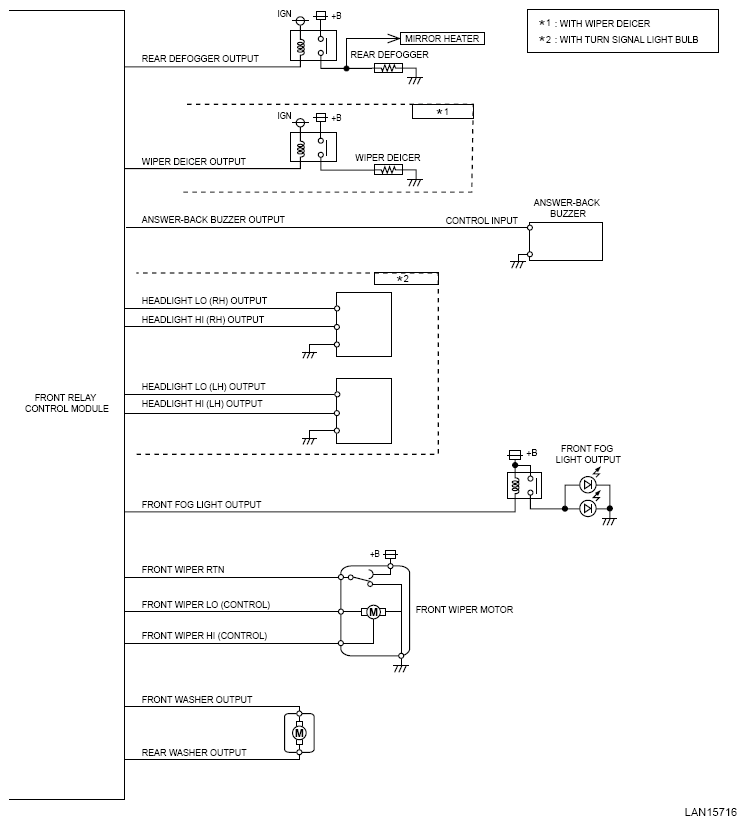

G14615496Courtesy of SUBARU OF AMERICA, INC.
