Keyless Access System

CAUTION:

When performing the check, check one access key at a time, separating individual keys.
Do not leave any separated access keys in the vehicle.
Fully open all the door windows.

NOTE: The following inspections show the initial settings. When the settings are different from the initial settings, use Subaru Select Monitor to check the details of each setting for inspections. Refer to BODY CONTROL SYSTEM (DIAGNOSTICS)>READ CURRENT DATA>OPERATION .

While carrying the access key, check that the room light illuminates when you move close to the front door handles of the vehicle whose doors are all locked.
While carrying the access key, check that the driver's door is unlocked, the buzzer sounds, and the hazard light blinks by grasping the front door knob (touching the touch sensor on the driver's side (unlock)).
While carrying the access key, check that all doors are unlocked, the buzzer sounds, and the hazard light blinks by grasping the front door knob (touching the touch sensor on the passenger's side (unlock)).

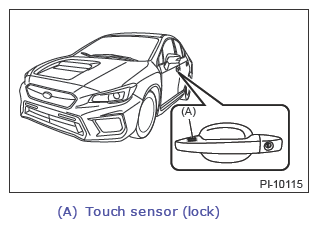

While carrying the access key, check that all doors are locked, the buzzer sounds, and the hazard light blinks by touching the touch sensor (lock) of the front door.
NOTE:
- The hazard lights flash twice and the buzzer sounds twice when unlocking.
- The hazard lights flash once and the buzzer sounds once when locking.
Courtesy of SUBARU OF AMERICA, INC.

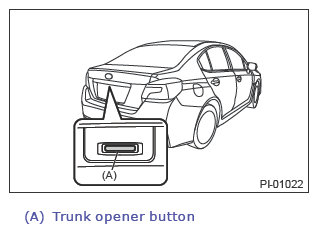

Check that the trunk unlocks, the hazard lights flash twice, and the buzzer sounds twice when the trunk opener button is pressed while carrying the access key.

Courtesy of SUBARU OF AMERICA, INC.
Manually operate the access key button to check the lock/unlock of doors, and the flashing of hazard lights.

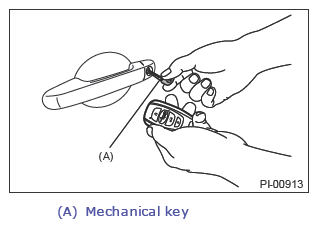

Check the mechanical key attached to the access key can be used for locking/unlocking.
CAUTION: The mechanical key is a single groove type. Insert the mechanical key with the groove side facing the front side of the vehicle.

Courtesy of SUBARU OF AMERICA, INC.
With the access key in the vehicle, check that warning buzzer sounds and locking does not occur when you touch the touch sensor on the door (lock).
CAUTION: Remove the mechanical key from the access key and hold the mechanical key.
With the access key in the trunk, check that the warning buzzer sounds and the trunk unlocks when you press the trunk opener button.
