Special Tool

SUBARU SELECT MONITOR

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	-	SUBARU SELECT MONITOR 4	Used for setting of each function and troubleshooting for electrical system. NOTE: For detailed operation procedures of Subaru Select Monitor 4, refer to "Application help".

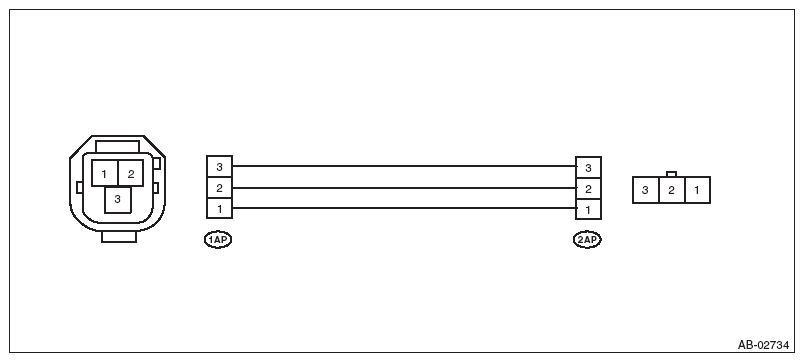

TEST HARNESS AP

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299FJ030	TEST HARNESS AP	Used when measuring voltage and resistance of occupant detection system.

G08316435

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AG

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG070	TEST HARNESS AG	Used when measuring voltage and resistance of airbag control module.

G05663419

Courtesy of SUBARU OF AMERICA, INC.

G05663420

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS Y

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG040	TEST HARNESS Y	Used for troubleshooting seat belt buckle switch.

G05003939

Courtesy of SUBARU OF AMERICA, INC.

AIRBAG RESISTOR

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299PA040	AIRBAG RESISTOR	Used in replacement of airbag module for which resistance value is same as airbag module.

G05003997

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS ADAPTER D

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299SA010	TEST HARNESS ADAPTER D	Used for operation process of pretensioner. Used together with AIRBAG DEPLOYMENT TOOL. (98299PA030)

AIRBAG DEPLOYMENT TOOL

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299PA030	AIRBAG DEPLOYMENT TOOL	Used for operation process of pretensioner. Used together with each test harness adapter.
