Bushing Front - Front Arm
- Before assembly, inspect the following items and replace any faulty part with a new one.
- Check the front arm assembly for damage or cracks, and replace if defective.
- Visually check the bushing for abnormal cracks, fatigue or damage.
- Visually check the boot on the ball joint for damage.
- Align the alignment mark on the front arm assembly to the split portion of the bushing intermediate plate of the busing front - front arm.

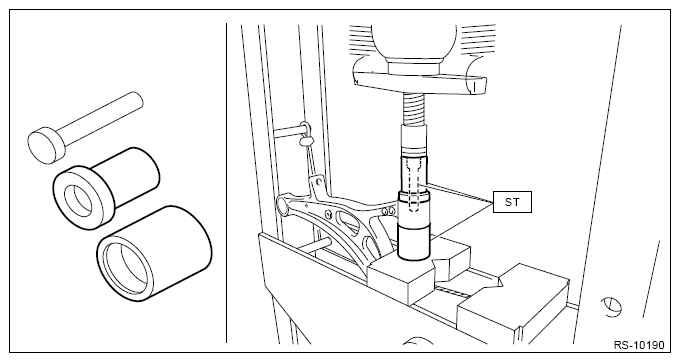

- Using the ST and a press, assemble the busing front - front arm.
Preparation tool:
ST: INSTALLER & REMOVER SET (927680000)
