Wheel Alignment: Inspection: Camber

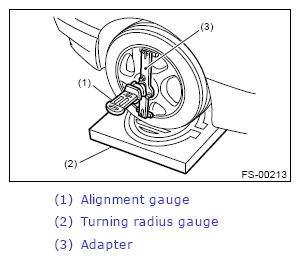

- Place the front tire on the turning radius gauge.NOTE: Make sure the ground contact surfaces of the front and rear tires are at the same height.
- Set the adapter into the center of wheel, and then set the wheel alignment gauge.
- Measure the camber angle in accordance with the operation manual for wheel alignment gauge.
| Model/tire size | Front camber (difference between RH and LH 45' or less) | Rear camber (difference between RH and LH 45' or less) | |
|---|---|---|---|
| WRX model | 235/45R17 | -0°45'±0°45' | -1°30'±0°45' |
| 245/40R18 | -1°40'±0°45' | ||
| STI model | 245/40R18 | ||
| 245/35R19 | |||
| 245/35ZR19 | |||
