Rear Bushing

Before installation, inspect the following items and replace any faulty part with a new one.
- Check the front arm assembly for damage or cracks, and replace if defective.
- Visually check the bushing for abnormal cracks, fatigue or damage.
- Visually check the boot on the ball joint for damage.
Using the ST and a press, install the pillow ball bushing.

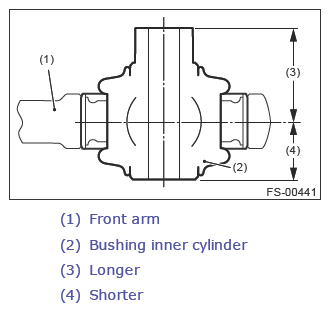

CAUTION: Install with the longer inner cylinder of the pillow ball bushing facing upward and the shorter facing downward.

Courtesy of SUBARU OF AMERICA, INC.

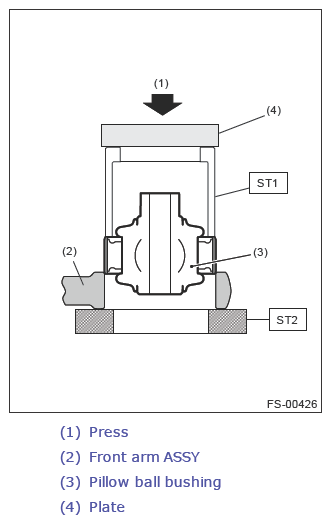

Preparation tool:

ST1: INSTALLER & REMOVER (20099AE020)

ST2: REMOVER (18723AA000)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Place a metal plate on the ST1 to use the press.
