Bushing Front - Front Arm

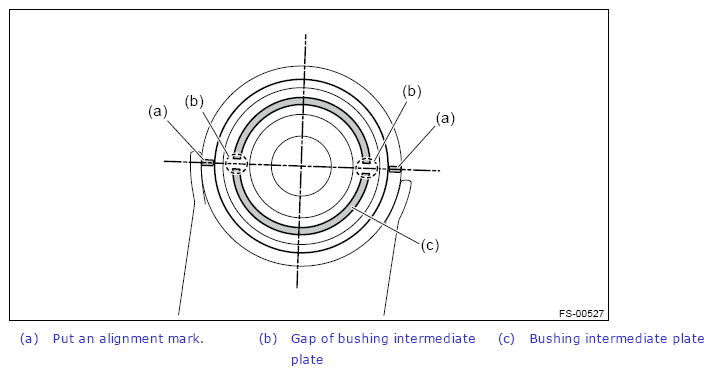

Put an alignment mark on the front arm assembly based on the split portion of the bushing intermediate plate of the busing front - front arm.
CAUTION: Always put an alignment mark for aligning the position on bushing installation.

Courtesy of SUBARU OF AMERICA, INC.

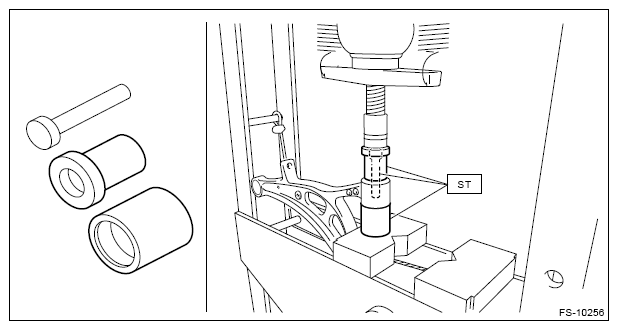

Using the ST and a press, remove the busing front - front arm.
Preparation tool:

ST: INSTALLER & REMOVER SET (927680000)

Courtesy of SUBARU OF AMERICA, INC.
