Front Stabilizer: Removal

  1. Lift up the vehicle, and then remove the left and right front wheels.
  2. Remove the under cover - front. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the front crossmember support. Refer to FRONT SUSPENSION>FRONT CROSSMEMBER SUPPORT PLATE>REMOVAL .
  4. Remove the front stabilizer.
    1. Remove the left and right stabilizer links.
    2. Remove the clamp - stabilizer bushing on the left and right sides.

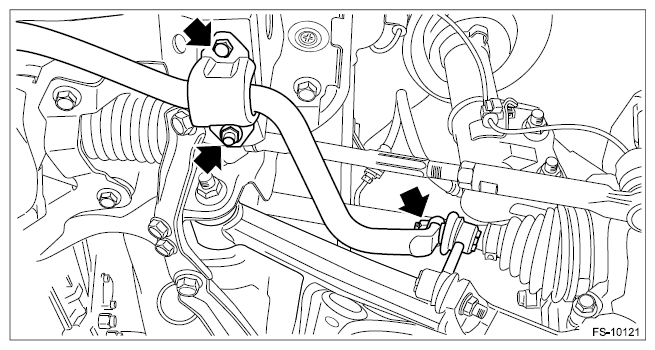

G12443159Courtesy of SUBARU OF AMERICA, INC.
