Front Strut: Removal

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the strut assembly.

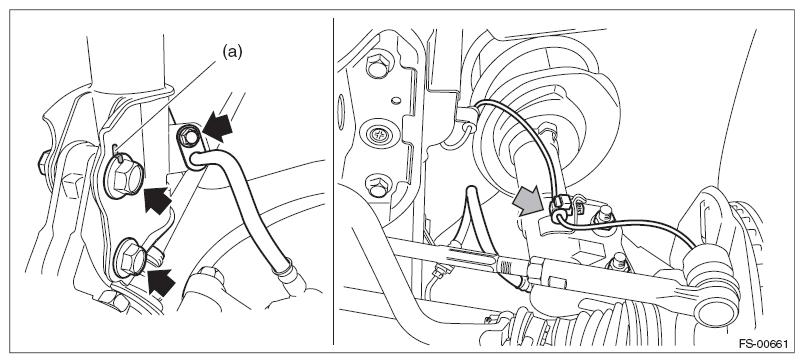

    1. Place an alignment mark (a) on the adjusting bolt and the strut.
    2. Remove the brake hose bracket.
    3. Remove the clamp of ABS wheel speed sensor harness.
    4. Remove the adjusting bolts and flange bolts for the strut assembly.
      CAUTION: While holding the adjusting bolt side, tighten the nut side.
      G10269453Courtesy of SUBARU OF AMERICA, INC.

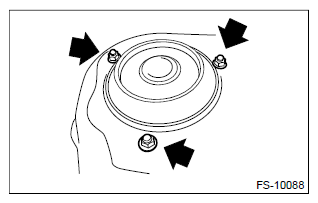

    5. Remove the three nuts securing strut mount to body.
G12443178Courtesy of SUBARU OF AMERICA, INC.
