Front Suspension

Electric power steering model

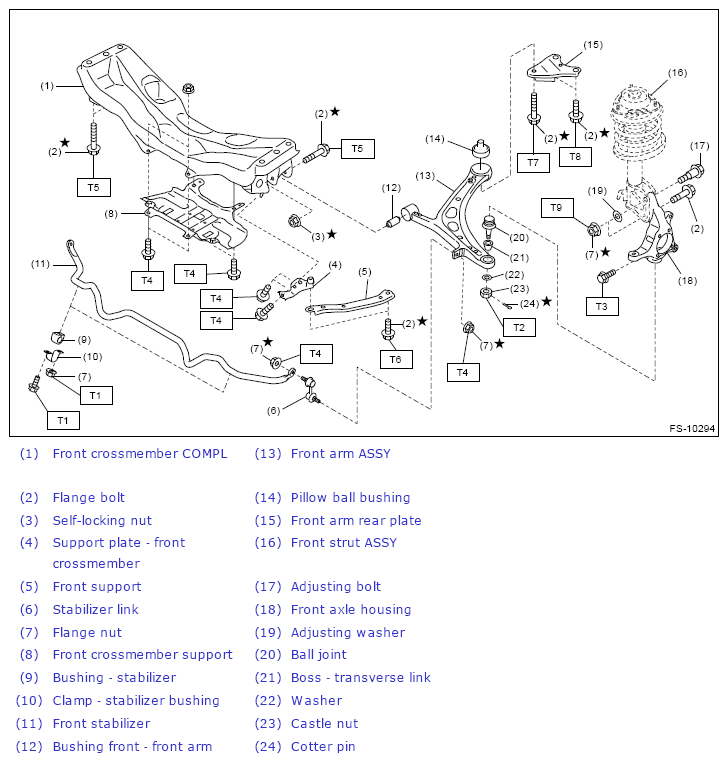

Fig 1: Front Suspension Components (With Torque Specification) (Electric Power Steering Model)

G13642450

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 39 (4, 28.8)

T3: 50 (5.1, 36.9)

T4: 60 (6.1, 44.3)

T5: 95 (9.7, 70.1)

T6: 100 (10.2, 73.8)

T7: 140 (14.3, 103.3)

T8: 150 (15.3, 110.6)

T9: 155 (15.8, 114.3)

Hydraulic power steering model

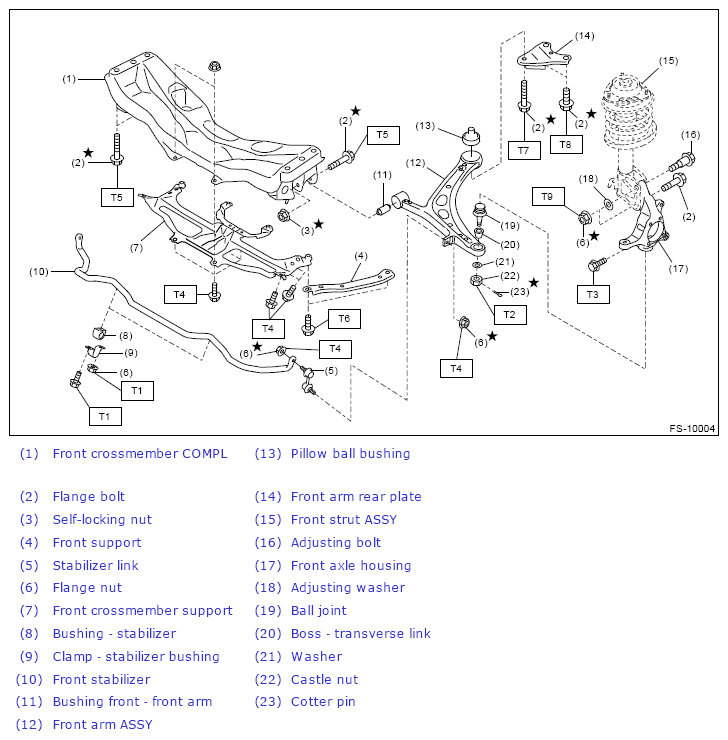

Fig 2: Front Suspension Components (With Torque Specification) (Hydraulic Power Steering Model)

G13642451

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 39 (4, 28.8)

T3: 50 (5.1, 36.9)

T4: 60 (6.1, 44.3)

T5: 95 (9.7, 70.1)

T6: 100 (10.2, 73.8)

T7: 140 (14.3, 103.3)

T8: 150 (15.3, 110.6)

T9: 155 (15.8, 114.3)
