6MT Gear Shift Lever (STI Model)

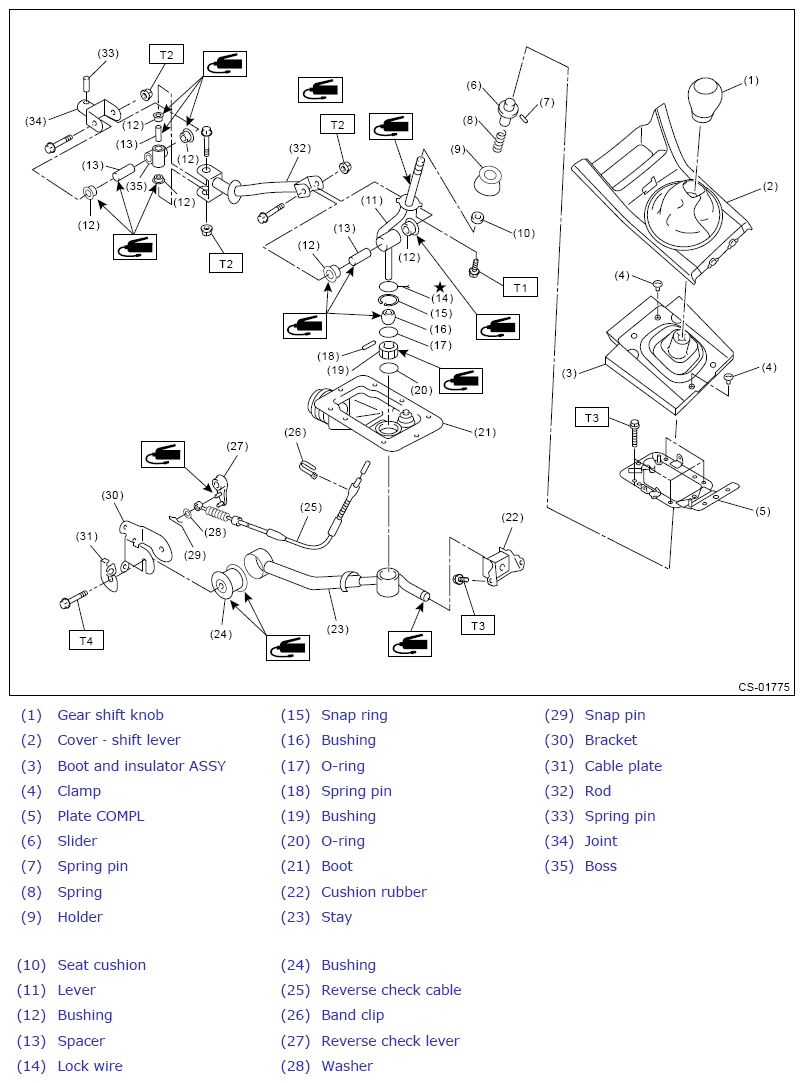

Fig 1: 6MT Gear Shift Lever Components (With Torque Specification) (STI Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.3 (0.1, 1.0)

T2: 12 (1.2, 8.9)

T3: 18 (1.8, 13.3)

T4: 32 (3.3, 23.6)
